Xilinx Virtex-7 FPGA VC7222 IBERT User Manual

VC7222 IBERT Getting Started Guide www.xilinx.com 57
UG971 (v5.0) June 12, 2014
In the Lane Selection tab, select Protocol0/28.05 from the drop-down menu
(Figure 3-4). Review the summary and finish the IP customization.
X-Ref Target - Figure 3-4

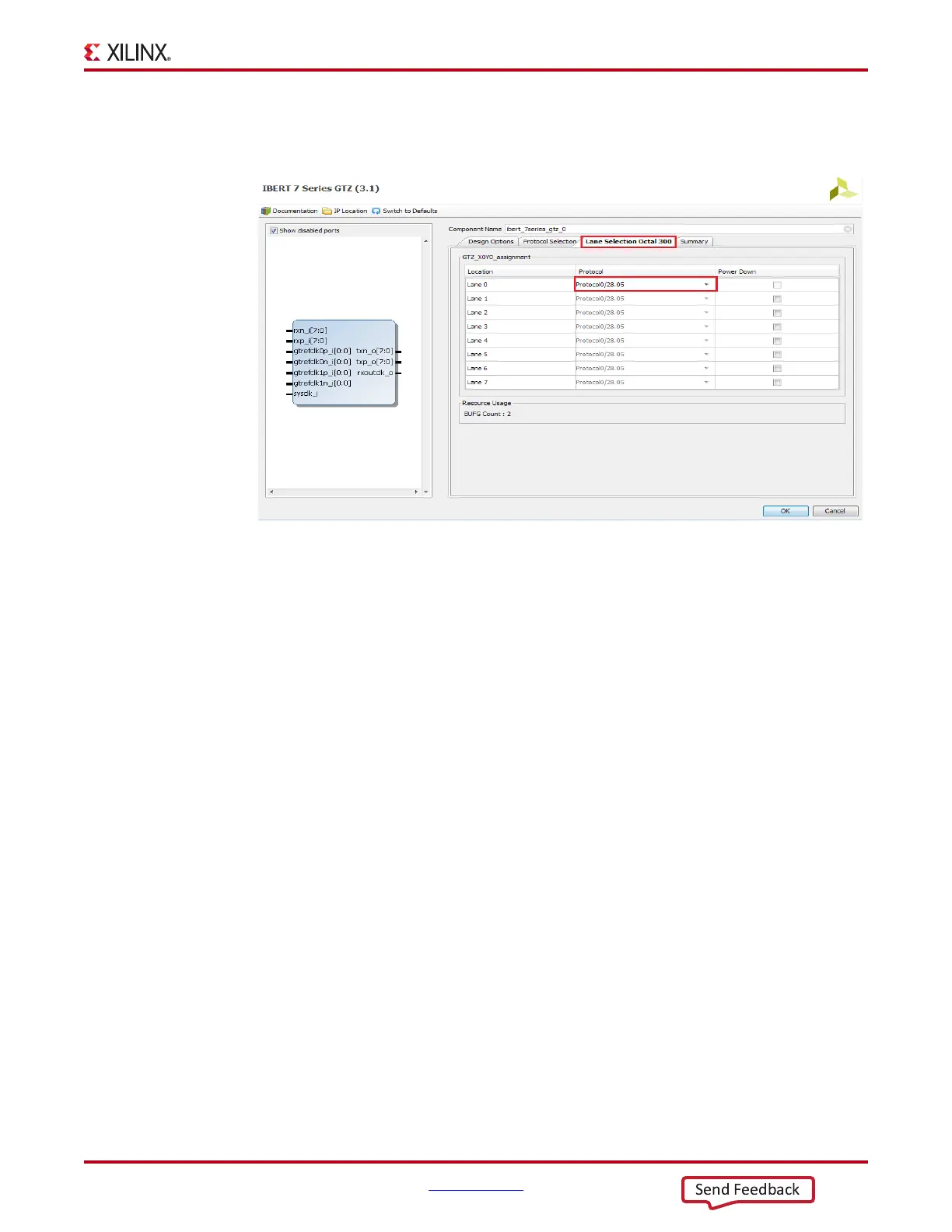

Figure 3-4: Customize IP - GTZ Lane Selection
8*BFBB
Send Feedback
