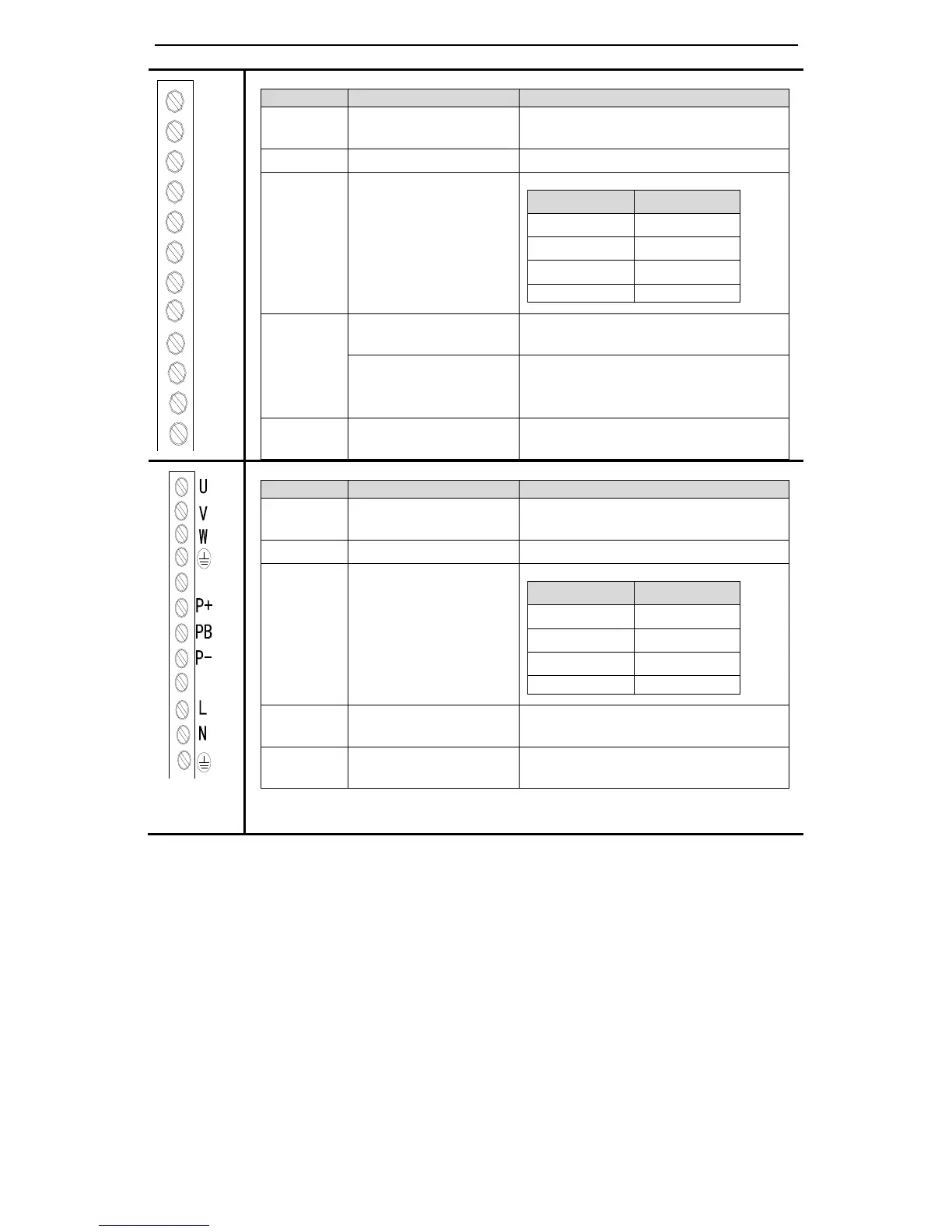

Xinje DS2-21P5-AS User Manual

12
 DS2-43P0-AS/AS6
Terminal
Function
Explanation
R/S/T
Power supply input of
main circuit
3 phase AC 360～400V, 50/60Hz
●
Vacant
U、V、W
Motor terminals
Connect the motor
Terminal
Color
U
brown
V
black
W
blue
PE
Yellow green
P+、D、C
Internal regenerative
resistor
Short P+ and D, disconnect P+ and C,
set P0-10=0
External regenerative
resistor
Connect regenerative resistor between
P+ and C, disconnect P+ and D, set
P0-10=1
P+/P-
Bus terminal
Real-time check the bus voltage, please
take attention of this terminal
 DS2-20P4-BS/BS6
Terminal
Function
Explanation
L/N
Power supply input of
main circuit
Single phase AC 200～240V, 50/60Hz
●
Vacant
U、V、W
Motor terminals
Connect the motor
Terminal
Color
U
brown
V
black
W
blue
PE
Yellow green
P+/PB
External regenerative
resistor
Connect regenerative resistor between
P+ and PB
P+/P-
Bus terminal
Real-time check the bus voltage, please
take attention of this terminal
R
S
T
.
U
V
W
P+
D
C
P-
.
.
.
