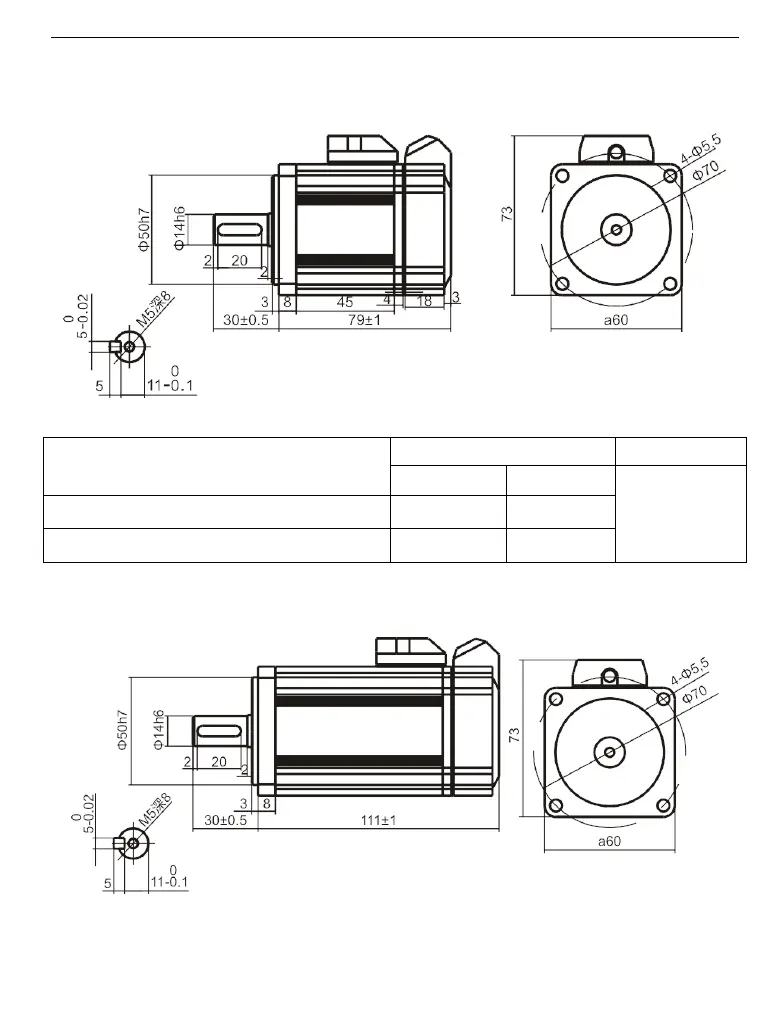

 60 series motor dimension Unit: mm

Motor model

Body length

Inertia level

Normal

With brake

Small inertia

MS5S-60ST-CS00630□□-20P2-SO1/S02

79±1

114±1

MS5S-60ST-CS01330□□-20P4-S01/S02

99±1

134±1
