Set P0-03 to 2
F1-05 = 0: cancel the enable, back to bb state.
F1-05 = 1: forced enable, servo is in RUN state.
Note: forced enable will be ineffective after power on again.
5. Absolute encoder clear number of turns
First power off the servo drive, then clear the absolute encoder number of turns. The operation
is shown as below:
Set F1-06 to 1 through the operate panel or write 1 to address 0x2106 through Modbus-RTU
(be effective in servo bb state, write 0 to 0x2106 after clearing) can clear the number of turns.

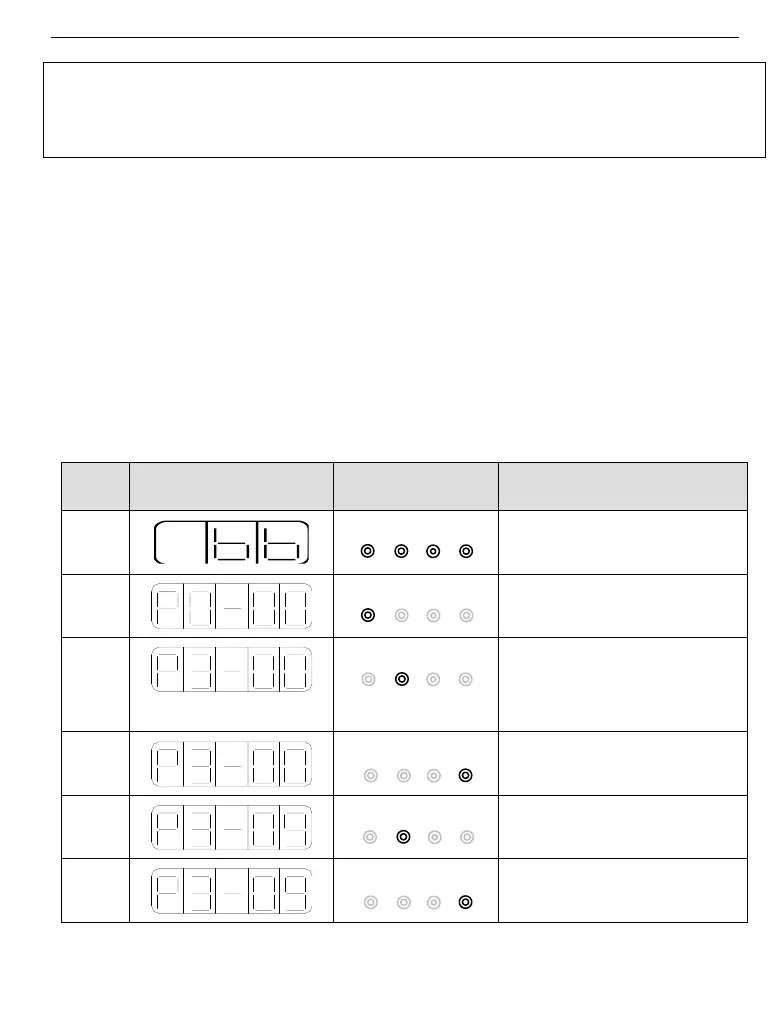

4-2. Panel key operation
Take P3-09 as an example:
Steps
Operate panel
Key
Operations
1
STA/ESC INC DEC ENTER
No need any operation
2
STA/ESC INC DEC ENTER
Press STA/ESC to enter
parameter settings
3
STA/ESC INC DEC ENTER
Press INC once will increase 1,
increase the parameter to 3, it
will show P3-00
4
STA/ESC INC DEC ENTER
Press ENTER, the last 0 will
flash
5
STA/ESC INC DEC ENTER
Press INC to increase to 9
6
STA/ESC INC DEC ENTER
Keep press ENTER, enter
P3-09 to change the value.
