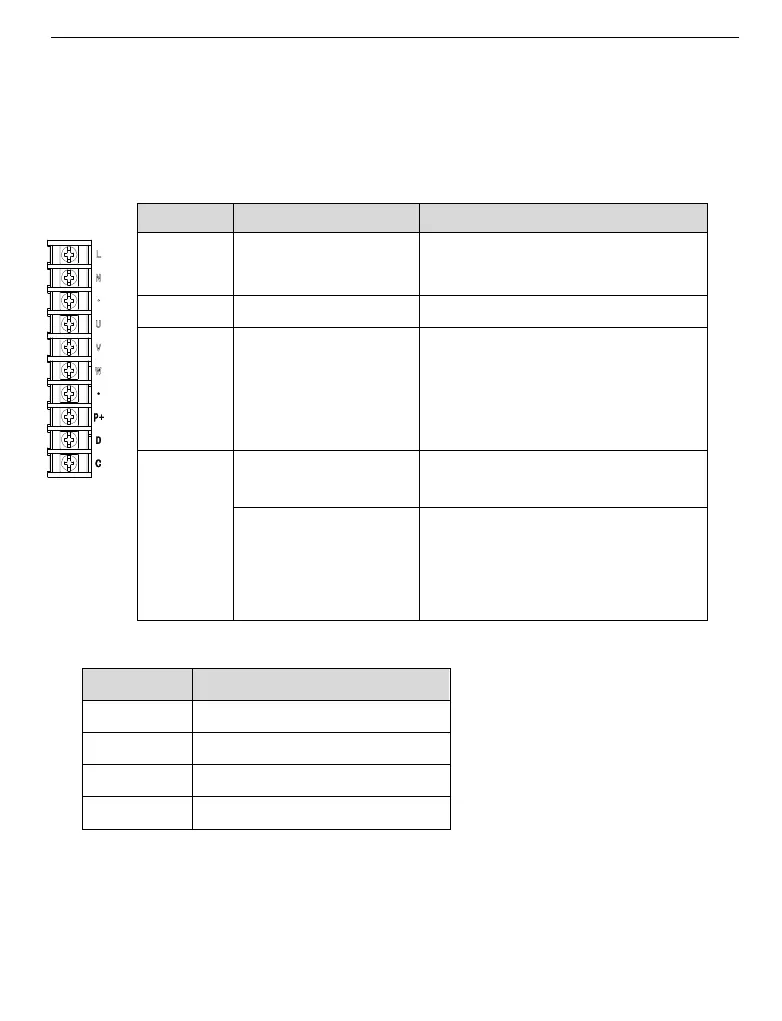

3.Servo drive and motor wiring

3-1. Main circuit terminals

 DS5C-20P1/2/4/7-PTA

Terminal

Function

Explanation

L/N

Power supply input of

main circuit

Single phase AC200~240V, 50/60Hz

●

Vacant terminal

U, V, W

Motor terminals

Connect the motor

(Note: the ground line is on the

cooling fin, please check it before

power on!)

P+, D, C

Internal regenerative

resistor

Short P+ and D, disconnect P+ and

C, set P0-24=0

External regenerative

resistor

Connect regenerative resistor

between P+ and C, disconnect P+

and D, set P0-24=1, P0-25= power

value, P0-26= resistor value

 Wiring terminals of servo motor

Signal

40, 60, 80 series motor

4-yellow green

1-brown

3-black

2-blue
