Xinje DS5C Series

30
0x0001 means /C-SEL has input, 0x0041 means /C-SEL and /I-SEL has input.
Note: “—“ is reserved bit, it is always 0.

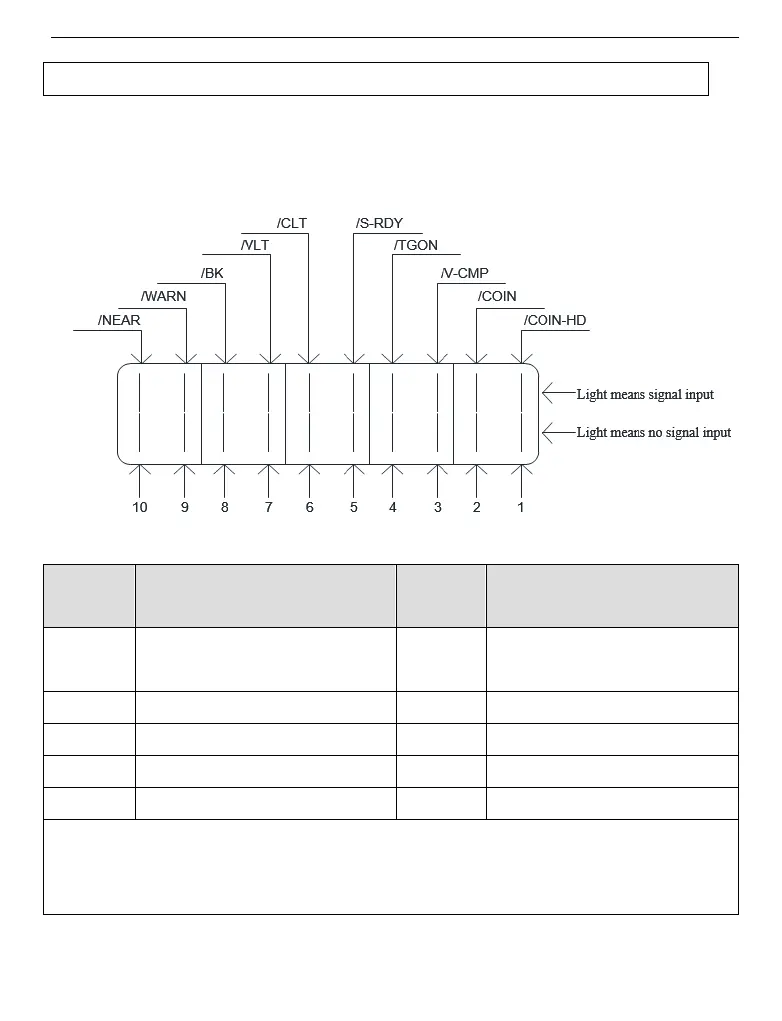

U0-23 output signal status
U0-23 output signal 1 distribution
Segment
code
Explanation
Segment
code
Explanation
1
Positioning complete maintain
(/COIN_HD)
2
Positioning end (/COIN)
3
Same speed detection (/V-CMP)
4
Rotate detection (/TGON)
5
Ready (/S-RDY)
6
Torque limit (/CLT)
7
Speed limit detection (/VLT)
8
Brake lock (/BK)
9
Warn (/WARN)
10
Output near (/NEAR)
Note: read the status through communication, the binary value from right to left are related to
/COIN_HD, /COIN. 0 means no output, 1 means has output. For example: 0x0001
means /COIN_HD has output, 0x0201 means /COIN_HD and /NEAR has output.
