Note
Selectonlytwodisks,notthree,orfour.Ifyoudo,thesystemwillconfigurethethirdandfourth
diskassparediskswithintheRAID1configuration.Ifyouwanttoputdisk1and2inRAID1,
andalsodisk3and4,executethissteptwice:oncefordisk1and2,andoncefordisk3and4.
8. ChooseMake RAID 1 (mirror) from selected disks.
9. Whenmirroringhasfinished,chooseMain menu,andthenchooseReboot.
3.9.3 Retrieving RAID 1 Information
YoucanretrieveRAID1informationusingtheTelnetta,hd,raidcommand,orusingtheXOclientsoftware.
TocheckifdisksareinRAID1modeintheXOclientsoftware,proceedasfollows:
1. LaunchtheXOclientsoftware.

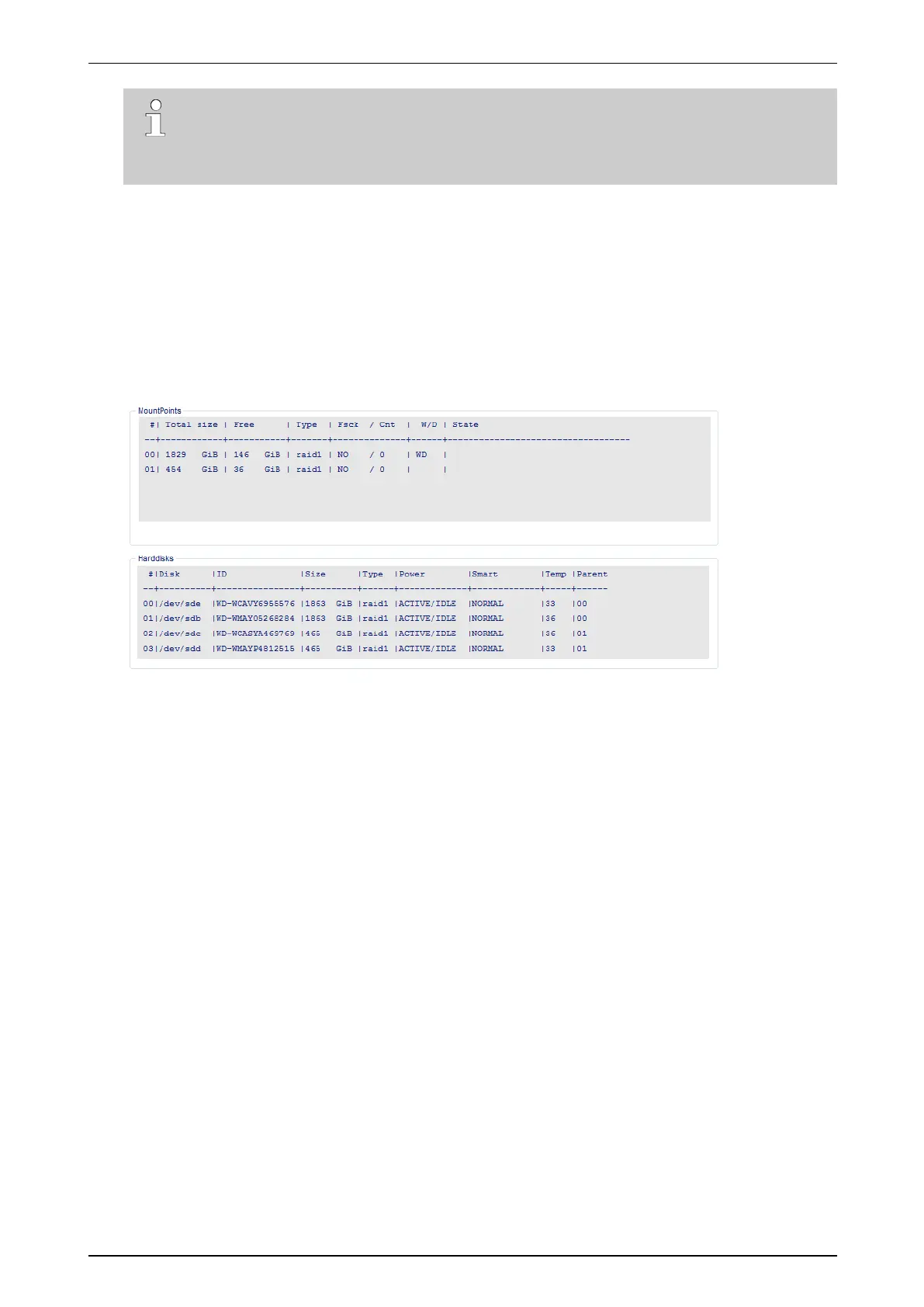

2. ChooseSystem >Maintenance >Harddisks.Thefollowingscreenappears:
TheMountPoints panedisplaysthemountpoints(=writingdisks).TheType columnindicateswhetherthe
mountpointisanormaldiskoraRAID1disk.
TheHarddisks panedisplaysthephysicalharddiskinformation.TheType columnindicateswhetherthediskis
anormaldiskoraRAID1disk.TheParent columnindicatesthecorrespondingmountpoint.
Theexampleaboveshowsadevicewith4disksandRAID1(twomountpoints).
