8.3 Mapping the XO I/O Interface USB Module
ToconnectandmaptheXOI/OInterfaceUSBmodule,proceedasfollows:
1. First,connecttheXOI/OInterfaceUSBmoduletotheXOdeviceusingtheprovidedUSBcable:insertone
endintothemodule,andtheotherendintoafreeUSBportontheXOdevice.

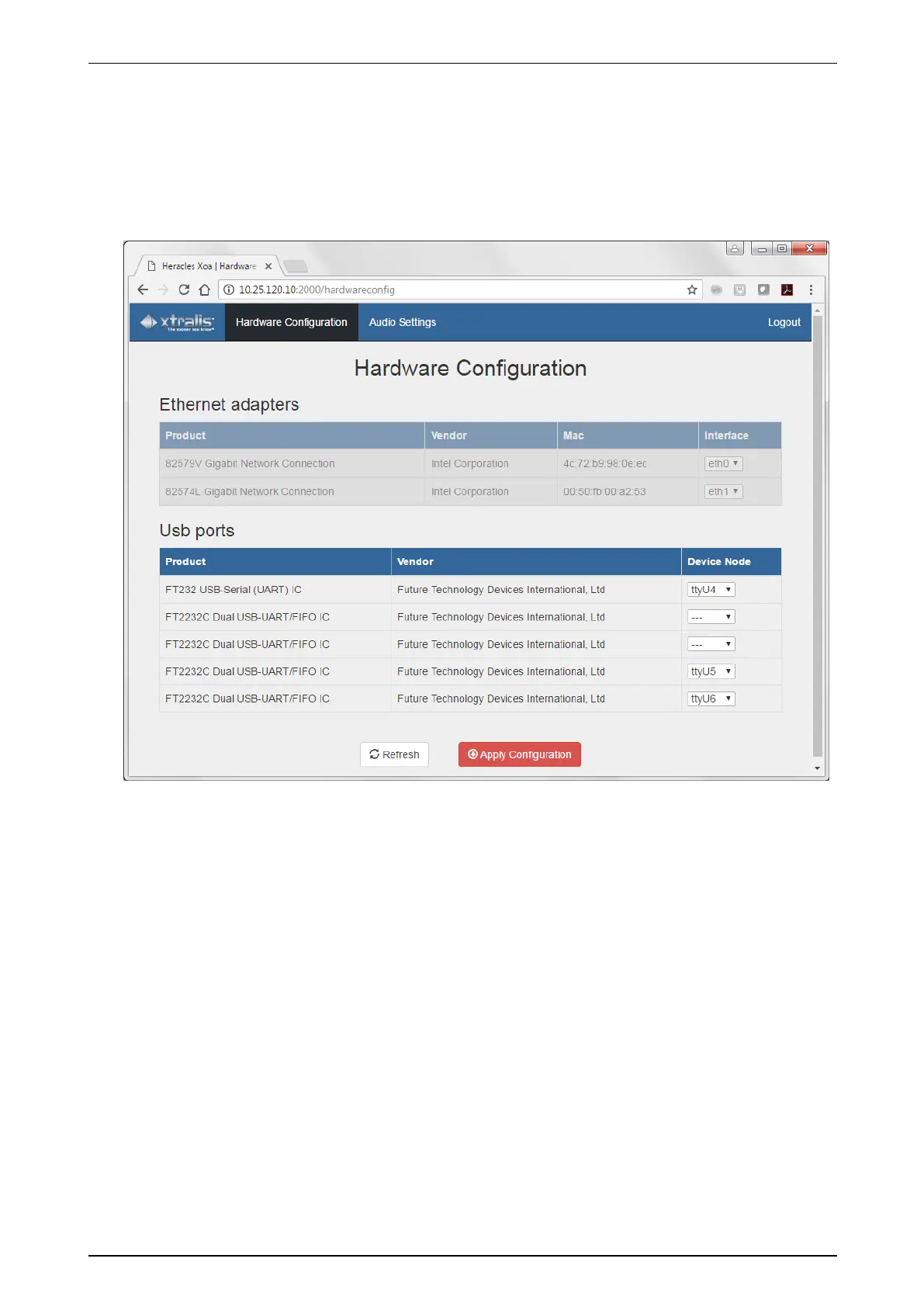

2. Inthehardwareconfigurationtool,clickRefresh.TheMIOandEIOcardinthemodulewillnowappearinthe
list,withtheDevice Node columnempty:
3. ThefirstrowistheEIOcard:settheDevice Node tottyU7.
