ADPRO iFT Series Hardware Installation Manual

27817_05 41

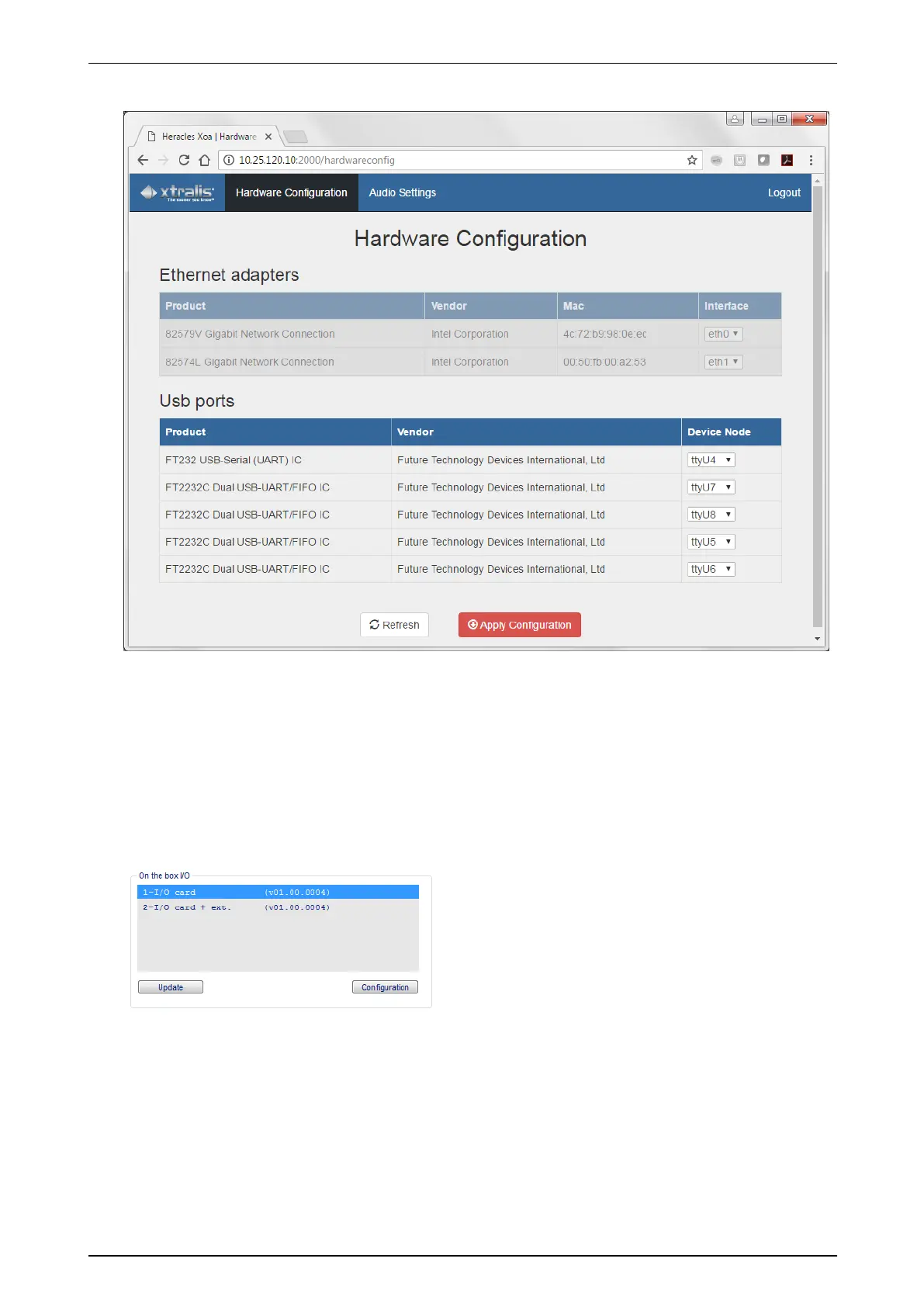

4. ThesecondrowistheMIOcard:setthetheDevice Node tottyU8.

5. ClickApply Configuration.

ThemessageAre you sure to apply your configuration? appears.

6. ClickApply.

TheWaiting to apply… messageappears.

7. Waitforthemessagetodisappear.

8. ClickLogout.

9. RestarttheXOdevice.

10. OpentheXOclientandcheckifthemoduleisvisibleintheI/Owindow:chooseSystem >Connections >

I/O.Youwillseeasecondlineindicating2-I/O card + ext.

YoucannowusetheMIO/EIOcardsinthemoduleinthesamewayastheMIO/EIONextGenerationcards.The

LEDsontheXOI/OInterfaceUSBmodulefollowtheLEDsonthefrontoftheXOdevice.
