Xtrails ADPRO iFT - Chapter 12: Audio Switcher Setup; VM22 A Audio Switcher Setup; VM22 E Audio Switcher Setup

iFT Series Hardware Installation Manual ADPRO
46 27817_05
l UseVM22E audiounitstoconnectupto32loudspeakers.Installupto8VM22Eunitsincascade:

o
Unit0drivesspeakers1to4.

o
Unit1drivesspeakers5to8…
l UsetheIPaudiooutputsonyourIPcameraswith(built-in)speakers.Thisfeatureisavailablewithfirmware
versionXOa3.02andabove;andforspecificcameramodelsonly.Formoreinformation,seetheSupported IP
Camera List(26742).
l UsetheAxisNetworkHornSpeaker(C3003-E).UsageissimilartoIPcameraswithaudiooutcapabilities.
Fordetails,seeUsing the Axis IP Horn Speakeronpage49.
YouusetheXOclientsoftwaretoassignthedifferentspeakerstothecameras.Foreachcamera,youcan
choose:
l OneoutputonaVM22outputswitcher
l OneormoreoutputsonIPcameras.
12.2.2 Setup for VM22A
Note
TheVM22Aaudioswitcherisonlycompatiblewithbuilt-inMIOcards,notwiththeMIOcardsinthe
externalXOI/OInterfaceUSBmodules.

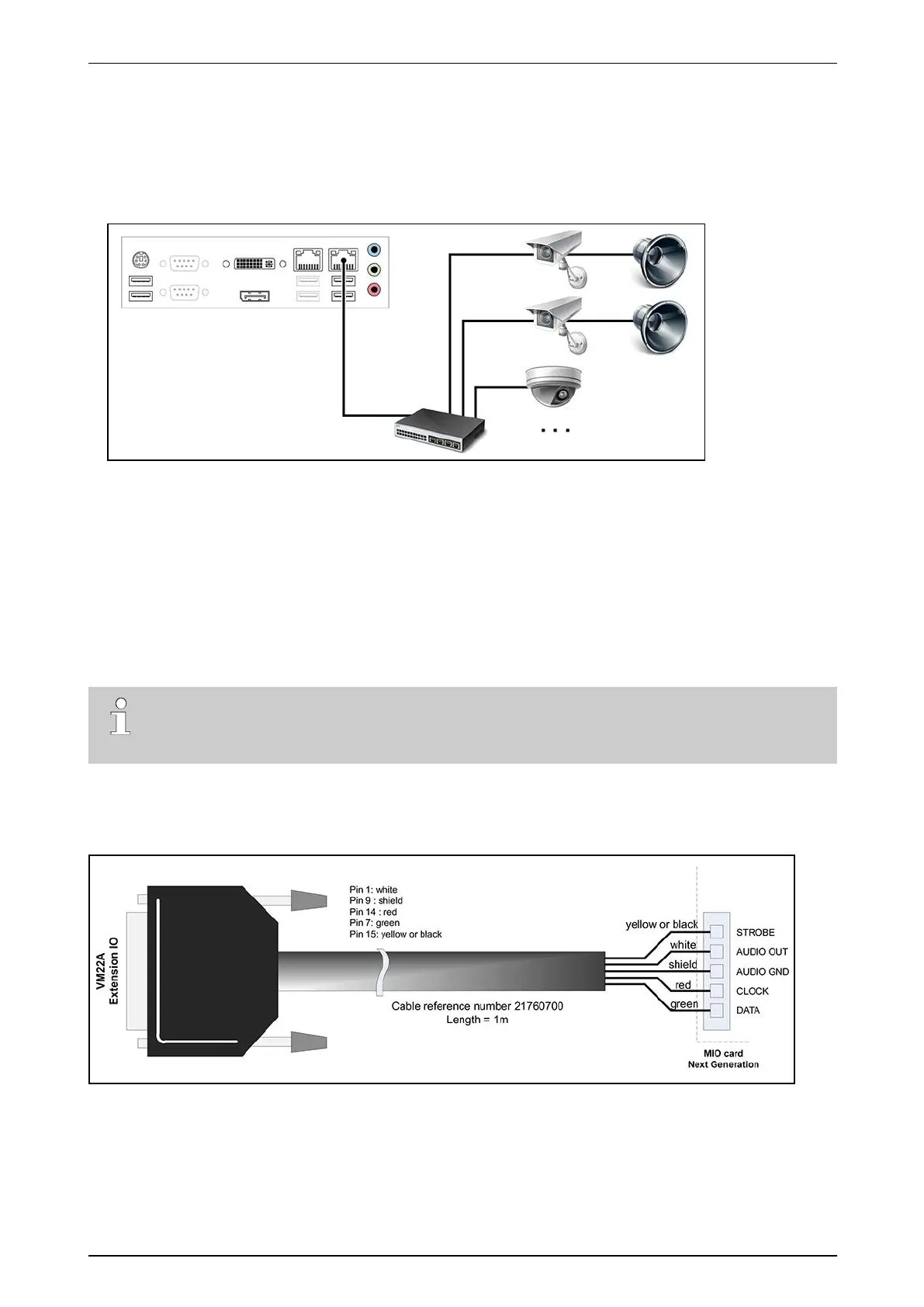

YouneedaspecificcabletoconnecttheVM22AtotheXOdevice.
Connectthecabletothebackofthedeviceasillustratedbelow.Respectthecolourcode(yellow=STROBE;
white=AUDIOOUT,shield=AUDIOGND,red=CLOCK,andgreen=DATA).
