Xtrails ADPRO iFT User Manual

iFT Series Hardware Installation Manual ADPRO
32 27817_05

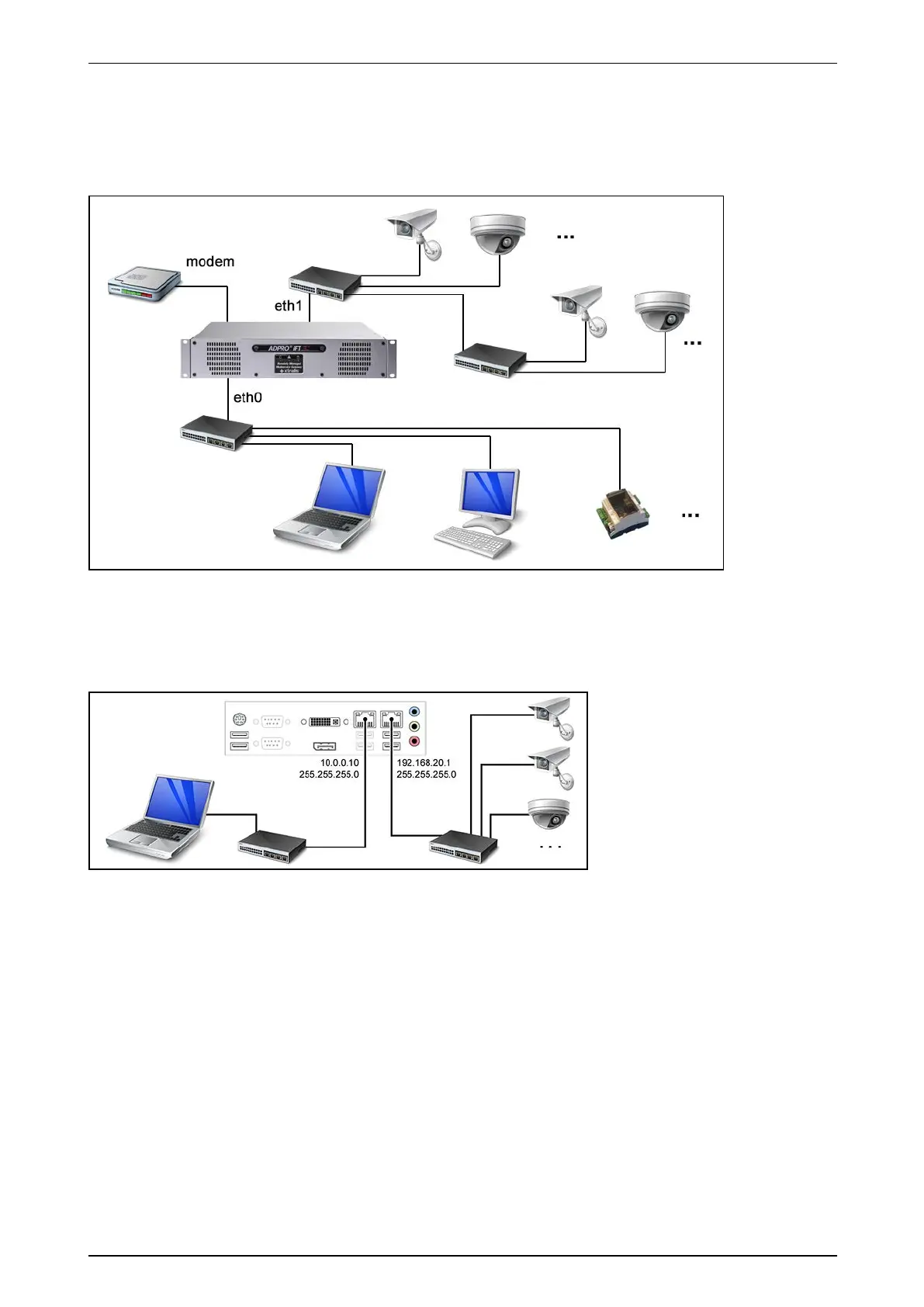

AllIPcamerasconnectedtoeth1needanIPaddressinthesamerange(samenetworksegment).However,in
largerbuildingsitmayhappenthattheIPcamerasareonmultiplenetworksegmentsusingmultipleIPaddress
ranges.AsoffirmwareversionXO4.0,youcanusestatic routes toextendtheeth1cameranetworktothese
othernetworksegments.Fortheconfigurationofthestaticroutes,seetheXO Client Software User Manual
(21796).
TheMiTACPH10LUmotherboardhastwoLANconnectorsonboard,thereforeyoudonotneedaseparate
EthernetcardtoconnecttotheIPcameranetwork.JustconnecttheIPcameranetworktotheeth1portusingan
Ethernetcable.
YoumustsettheEthernetconnectionofyourXOdevice(eth0)andtheEthernetconnectionofthecamera
network(eth1)todifferentIPranges.
