ADPRO iFT Series Hardware Installation Manual

27817_05 63

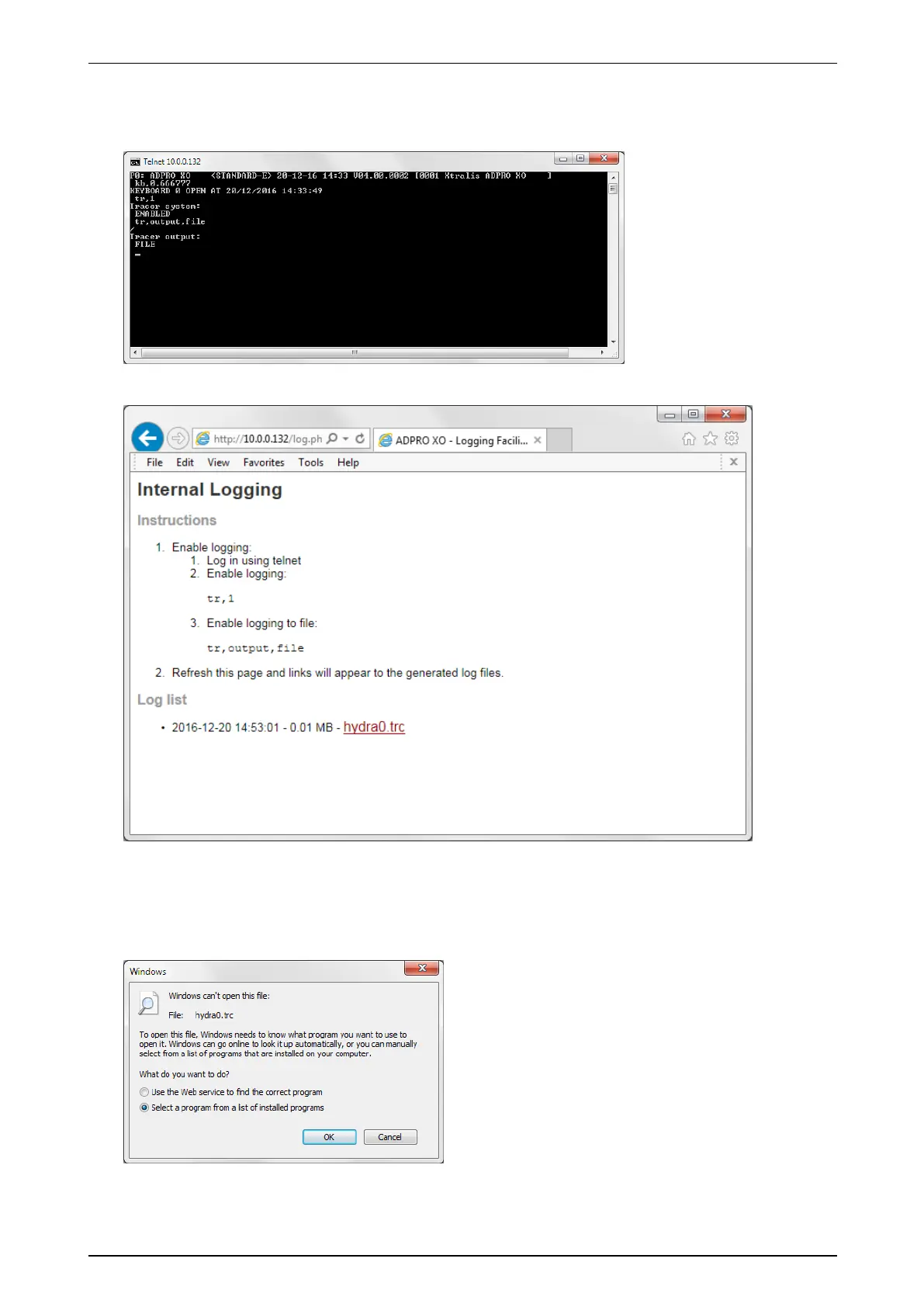

2. Toenablelogging,connecttothedeviceviaTelnetandenterthefollowingTelnetcommands:

tr,1

tr,output,file

Afteryouhaveenabledlogging,linkstothelogfilesappearonthewebpageintheLog list:

3. Toretrievealogfile,clickthelinkonthewebpage.

Dependingonyoursystemsettings,thesystemwillopenthefileinthebrowser,orwill(askto)download

thefile.

4. Ifyouhavedownloadedthefile,double-clickittoopenit.Ifthefollowingmessageappears,chooseSelect a

program from a list of installed programs,andthensetNotepad asdefaultapplication.

Default Chapter5
