Installation
Any installation of an ECO gas detector must comply with loca
safety regulations and to the fire safety regulations
when being fitted as
part of a fire detection network.
When installing the ECO gas detector it is suggested that the
engineer
installation checklist provided in” Appendix C – Installation
Check List
as a record for future reference for service and maintenance.
Air Inlet/Outlet Pipe Connections
The tapered shape of the Air inlet/outlet port of the ECO is designed to accept
standard pipes of OD 25mm
(ID 21 mm) or BPS ¾ in (OD 1.05 in) and as such
provide an air tight seal. Connection to pipe networks of other sizes should not be
done without first confirming their compatibility with your ECO Product distributor.

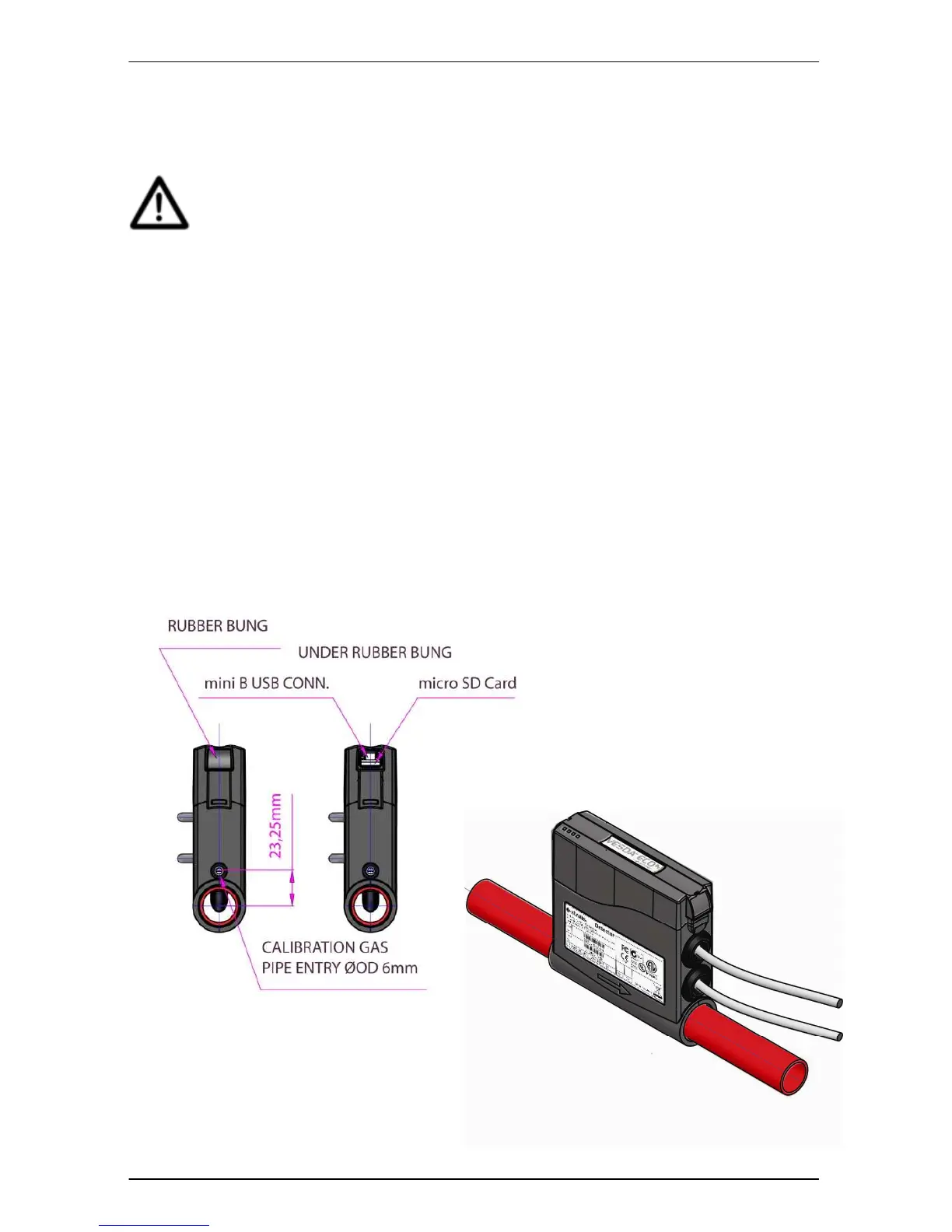

Mechanical Dimensions
Product Guide
7
Any installation of an ECO gas detector must comply with loca
l electrical
when being fitted as
engineer
fill in the
Check List
” and keep it
The tapered shape of the Air inlet/outlet port of the ECO is designed to accept
(ID 21 mm) or BPS ¾ in (OD 1.05 in) and as such
provide an air tight seal. Connection to pipe networks of other sizes should not be
done without first confirming their compatibility with your ECO Product distributor.
