Xtralis VESDA ECO - Status Indicator Operation

VESDA ECO Detector by Xtralis
17898_05 Principles of Operation
Status Indicator Operation
The VESDA ECO has four LEDs to indicate power, fault and alarms. These LEDs
can be inactive; flashing or on steady, depending on its assigned function and the
level of alarm severity. (See table below).
LED On
Flashing
Green Power Good
Communications Active
Yellow Major Fault
Minor
Red Sensor 1 High Alarm
Sensor 1
Red Sensor 2 High Alarm
Sensor 2

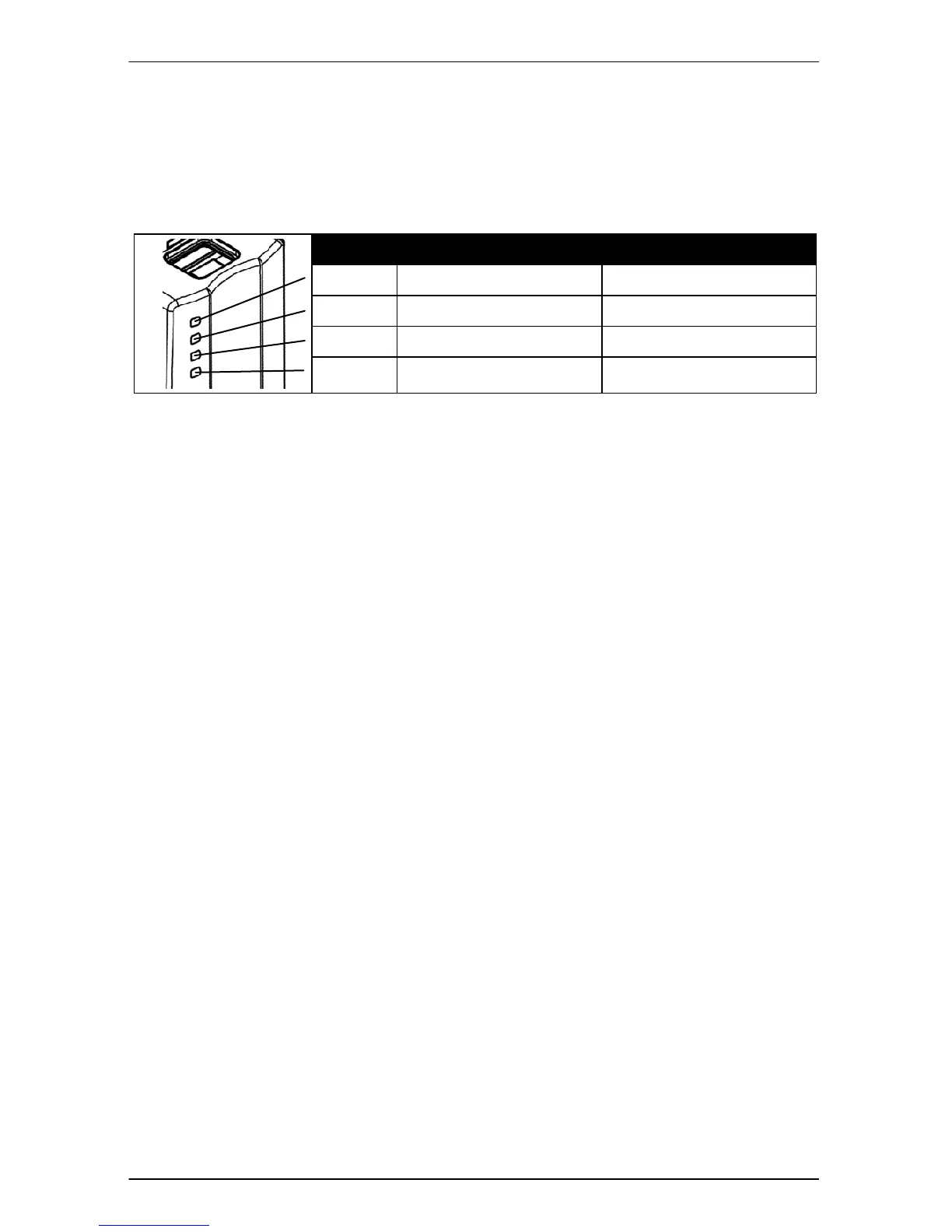

Figure 14 Status Indicators
Serial Communication Interfaces
Refer to section
Product Guide
25
The VESDA ECO has four LEDs to indicate power, fault and alarms. These LEDs
can be inactive; flashing or on steady, depending on its assigned function and the
Flashing
Communications Active
Minor
Fault
Sensor 1
Low Alarm
Sensor 2
Low Alarm
