Sensor Module Configuration

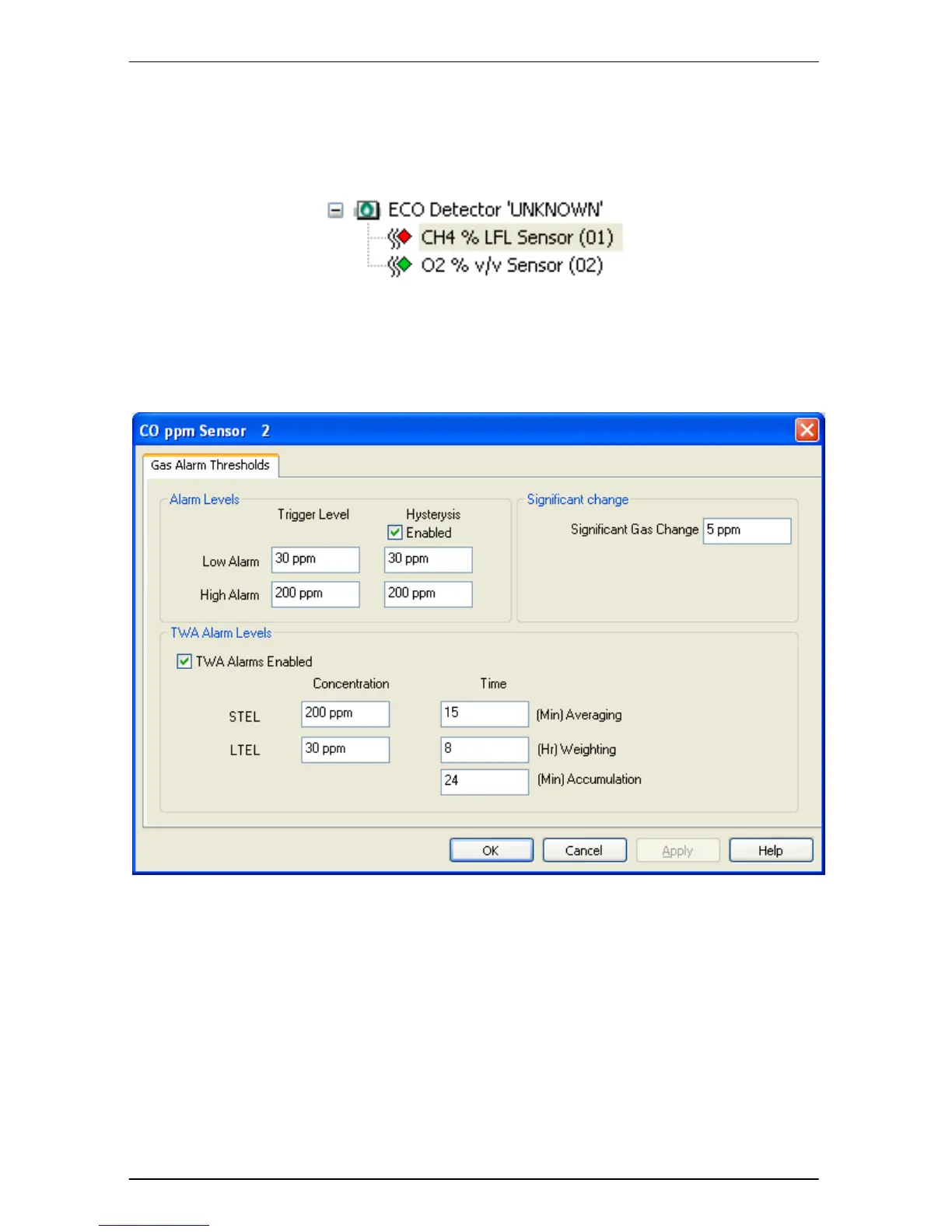

To configure an ECO sensor, double click the sensor that is to be set-up in the
‘Detector overview’ zone of Xtralis VSC main window as shown in Figure 34
Figure 34 Sensor Configuration
The sensor configuration dialog will be displayed. It will look similar to that shown
below in Figure 35 Sensor Dialog.
Figure 35 Sensor Dialog
The sensor dialog allows the configuration of Low and High Alarm Thresholds, TWA
Alarm Thresholds (Time Weighted Average), Alarm Hysteresis, Significant Change
Threshold and confirms/modifies Alarm latch behavior.
Note: The appearance of the Sensor dialog will vary with the types of gas being
monitored.
