VESDA ECO Detector by Xtralis Product Guide
17898_05 Configuration 51
Calibration
ECO detectors are pre-calibrated in the factory, however the detector sensors will
need to be periodically re-calibrated on site. Refer to the Calibration section on
page 31 for details calibration periods and how to select and connect the calibration
gas to the ECO.

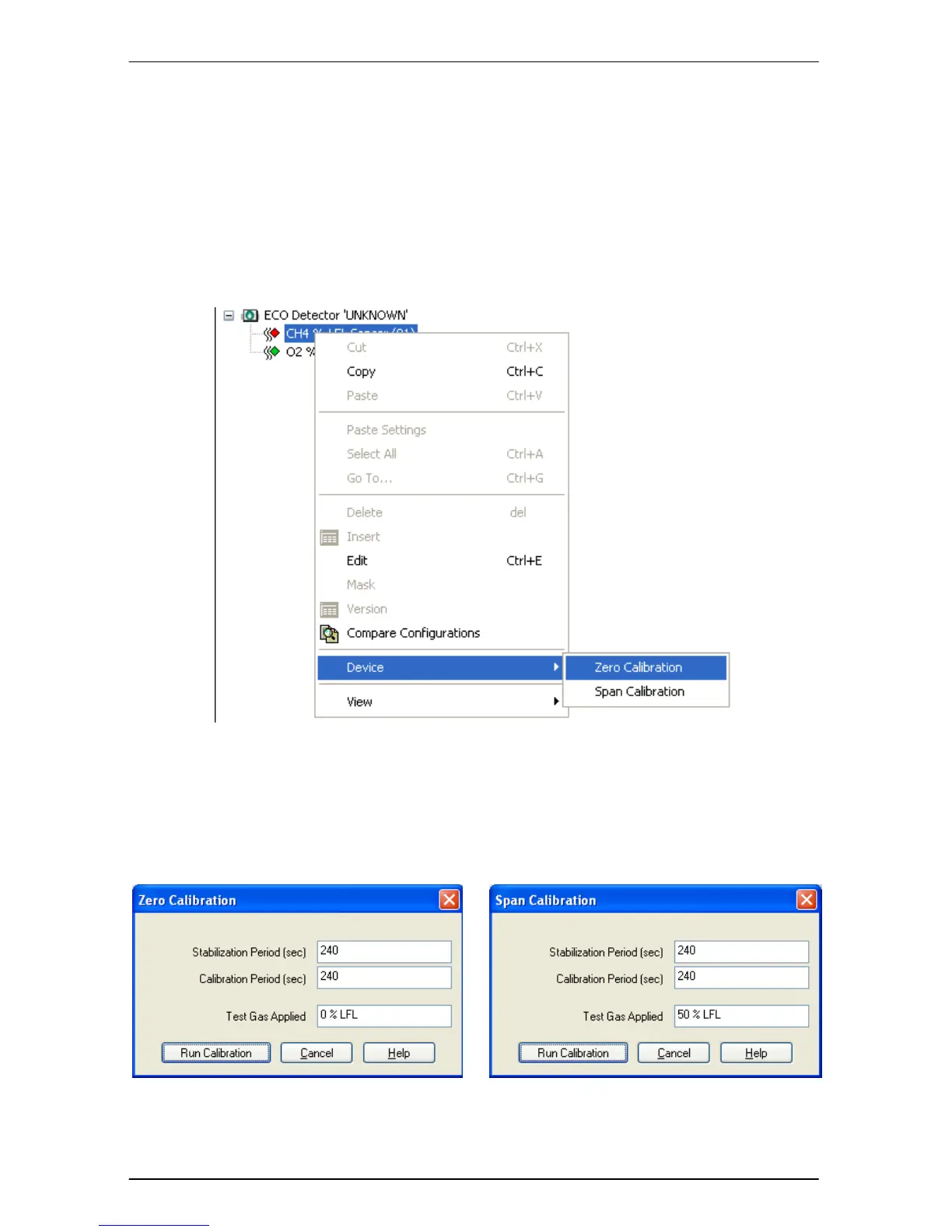

Zero and Span calibration for each sensor is performed by right clicking on the
sensor to be calibrated in the detector overview window. A menu will pop-up as
shown in Figure 36 Zero and Span Calibration menu options.
Figure 36 Zero and Span Calibration menu options.
Click the ‘Device’ menu option and then either the ‘Zero Calibration’ or ‘Span
Calibration’ menu option as required. The appropriate Zero or Span Calibration
dialog will then be displayed. See Figure 37.
