Relays Tab
The ‘Relays’ tab, shown in Figure 30 ECO Detector, Relays Tab allows the function
of each relay to be set. It allows the mapping of alarm and fault conditions to one or
more relays.

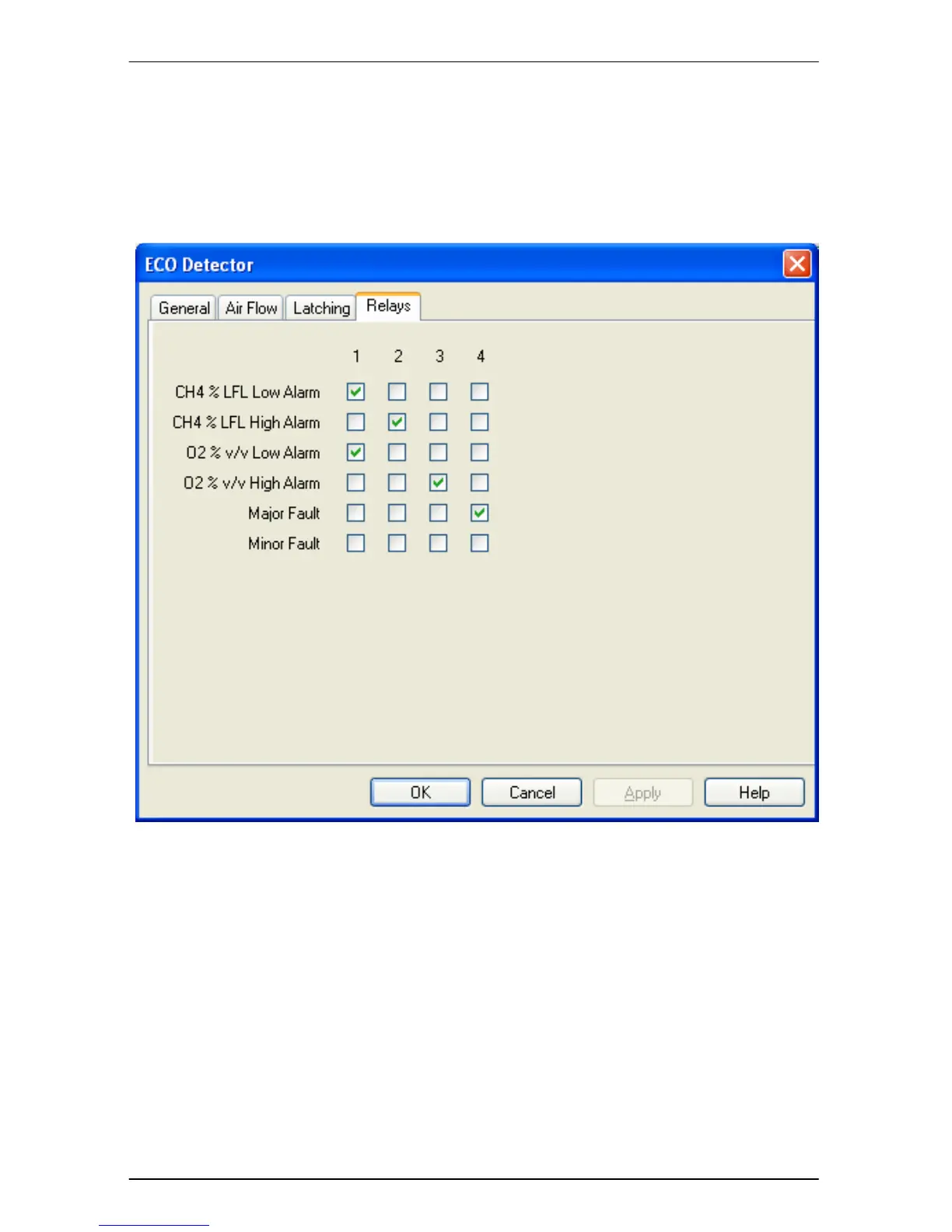

Figure 30 ECO Detector, Relays Tab
Checking a check box associates the alarm/fault condition to the checked relay.
For example;
In Figure 30;
Whenever a ‘Major Fault’ occurs, relays three and four will be activated.
Whenever ‘H2 % LFL Low Alarm’ occurs, all four relays will be activated.
Note: The number of checkboxes and their labels will vary with the number of
sensors fitted and the gas types being monitored.
