Xtralis VESDA VLI - Dimensions

VESDA VLI Product Guide VESDA by Xtralis
12 www.xtralis.com

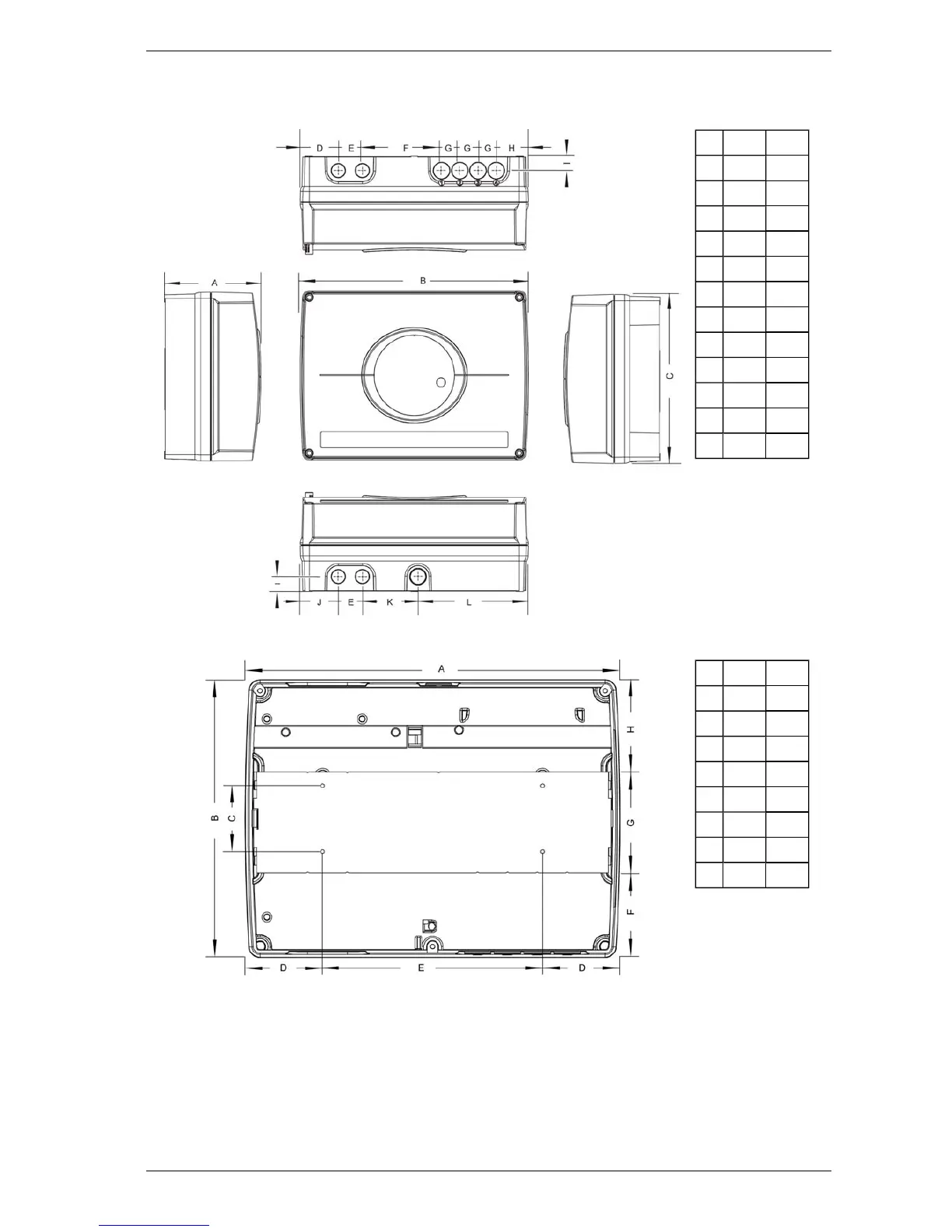

2.6 Dimensions
mm inch
A 180 7.08
B 426.5 16.8
C 316.5 12.46
D 70.2 2.76
E 45 1.77
F 149 5.87
G 34 1.34
H 60.3 2.37
I 26.7 1.05
J 70.2 2.76
K 105 4.13
L 206.3 8.11
Figure 2-4: Front Dimensions
mm inch
A 426.5 16.8
B 316.5 12.46
C 75 2.95
D 88.25 3.47
E 250 9.84
F 96.3 3.8
G 115.2 4.54
H 105 4.13
Figure 2-5: Rear Dimensions
