Xtralis VESDA VLI - Introduction; Features

VESDA by Xtralis VESDA VLI Product Guide
www.xtralis.com 3
1 Introduction
The VESDA VLI is an aspirating smoke detector (ASD) that provides very early warning of fire
conditions by drawing air samples through an air sampling pipe network.
The VLI detector is especially designed to operate in harsh and dirty environments. It incorporates
features that specifically address the common challenges of industrial installations, including:
l high background levels of airborne particles
l the need for an IP54 rated enclosure
l detector longevity
l the need for in-field maintenance

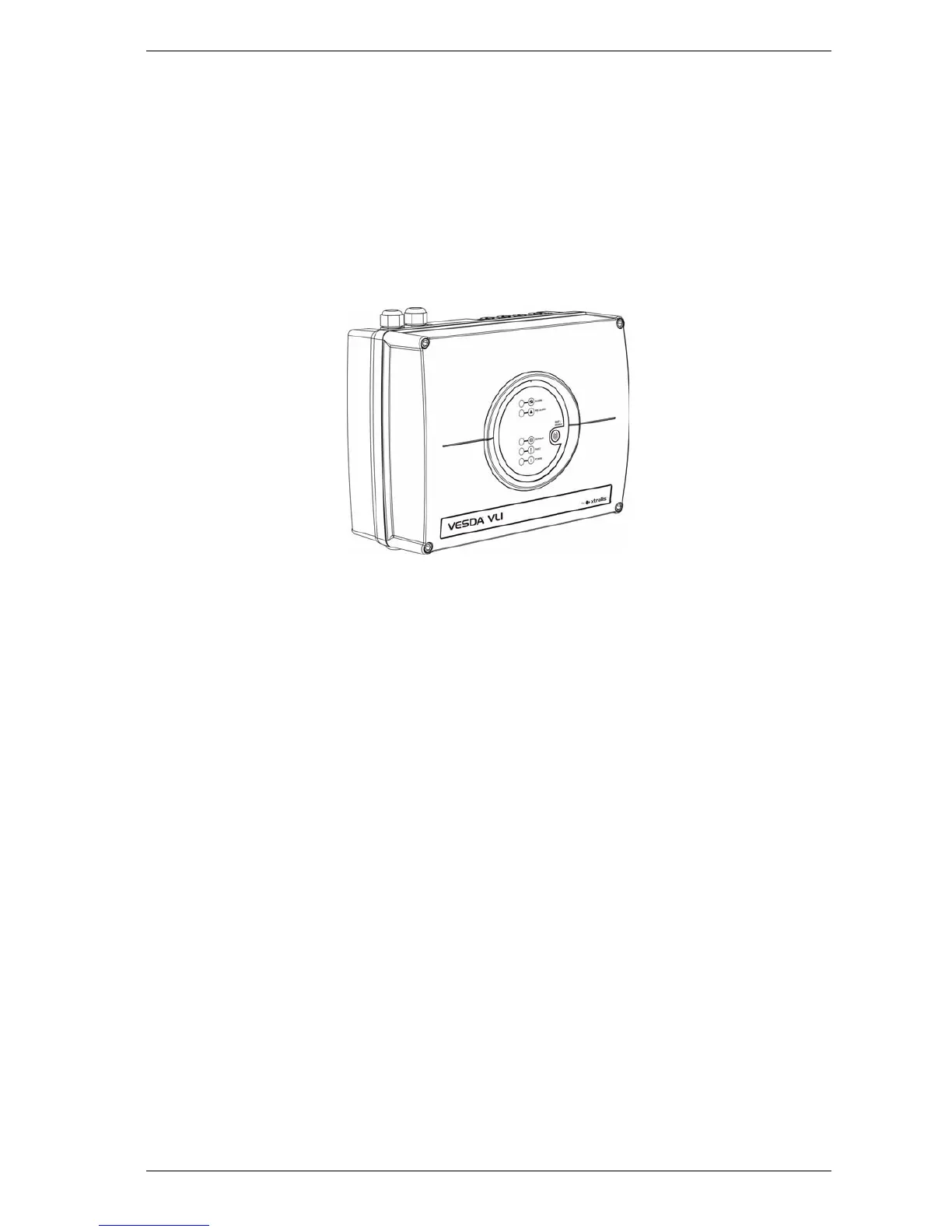

Figure 1-1: VESDA VLI Aspirating Smoke Detector
The detector easily interfaces with fire warning and fire suppression release systems, and can be
integrated into a building management system (BMS).
1.1 Features
The VLI detector contains the following features:
l Area coverage up to 2000m
2
(21,500ft
2
)
l Intelligent Filter (patent pending)
l Up to four pipes, with a total pipe length of 360m (1200ft)
l Wide sensitivity range
l AutoLearn™ Smoke and Flow
l Clean Air Zero™
l Five high intensity status LEDs
l Five relays (fire, fault and three configurable) configurable as latching or non-latching
l IP54 enclosure
l Inertial separator (sub sampling probe)
l Ultrasonic individual pipe flow monitoring
l Replaceable aspirator, detection chamber and filters
l Programmable General Purpose Input (GPI)
l Local USBconfiguration port
l BACnet over Ethernet
l Optional expansion cards (VESDAnet with monitored GPI)
l Referencing (on VESDAnet enabled model)
l Event log for up to 18,000 events
l Easy mounting through steel support bracket
l Xtralis VSC, Xtralis VSM4 and ASPIRE2 software support
