VESDA by Xtralis VESDA VLI Product Guide
www.xtralis.com 23

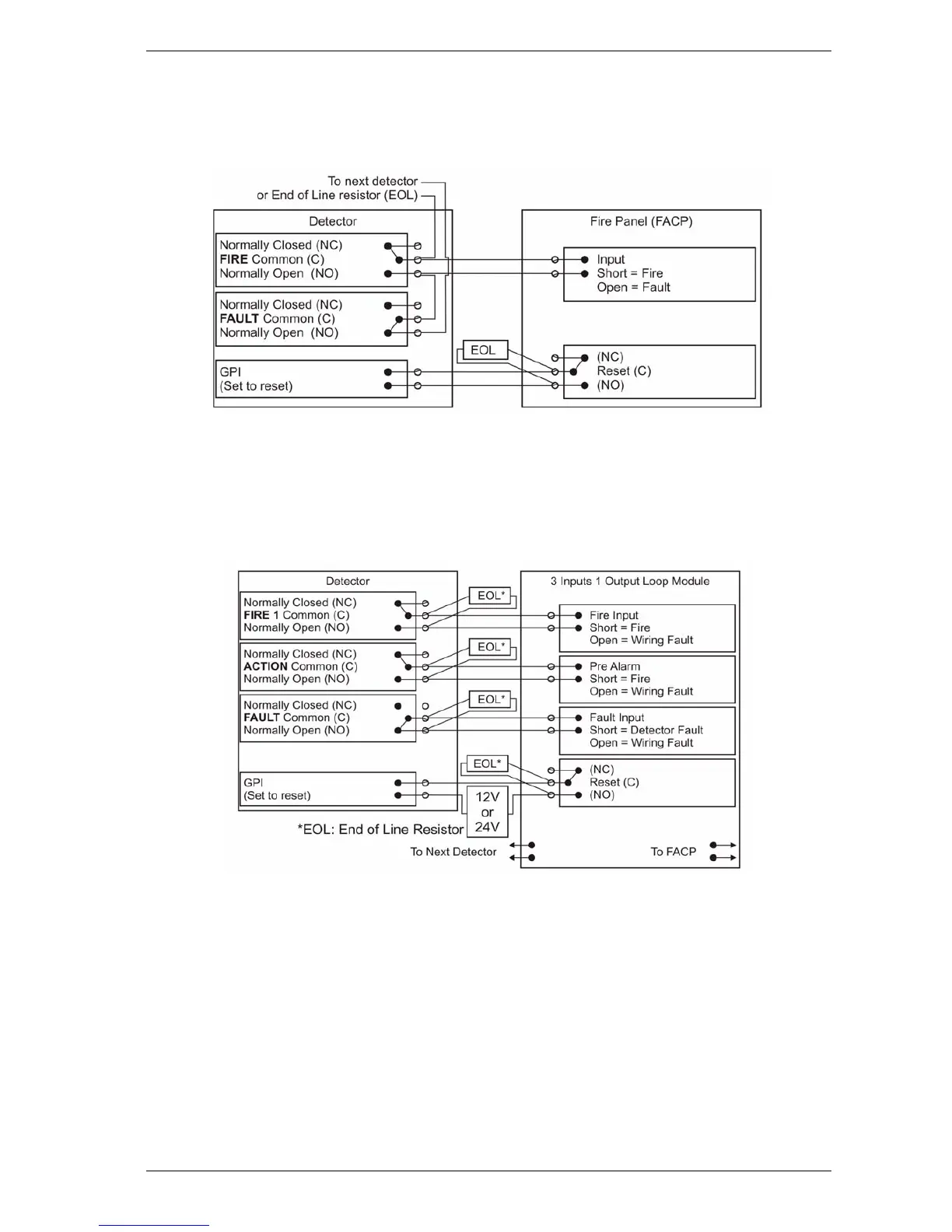

3.2.6 Typical Wiring to Fire Alarm Control Panel (FACP)
The diagram below shows the correct way to wire VESDA detectors to a conventional fire alarm
control panel (FACP). It also shows where an End Of Line (EOL) resistor is correctly installed.
Figure 3-10: Typical wiring to a fire panel with EOL
3.2.7 Typical Wiring to Address Loop Module
This wiring example is for wiring VESDA detectors to a typical Input/Output Loop module 3 inputs 1
output. These are example drawings. Refer to the appropriate product manual for the exact wiring
details of the third party equipment.
Figure 3-11: Input/Output Loop Module with EOL
