PAGE 22
Aquavar IPC Start-Up Genie
Xylem

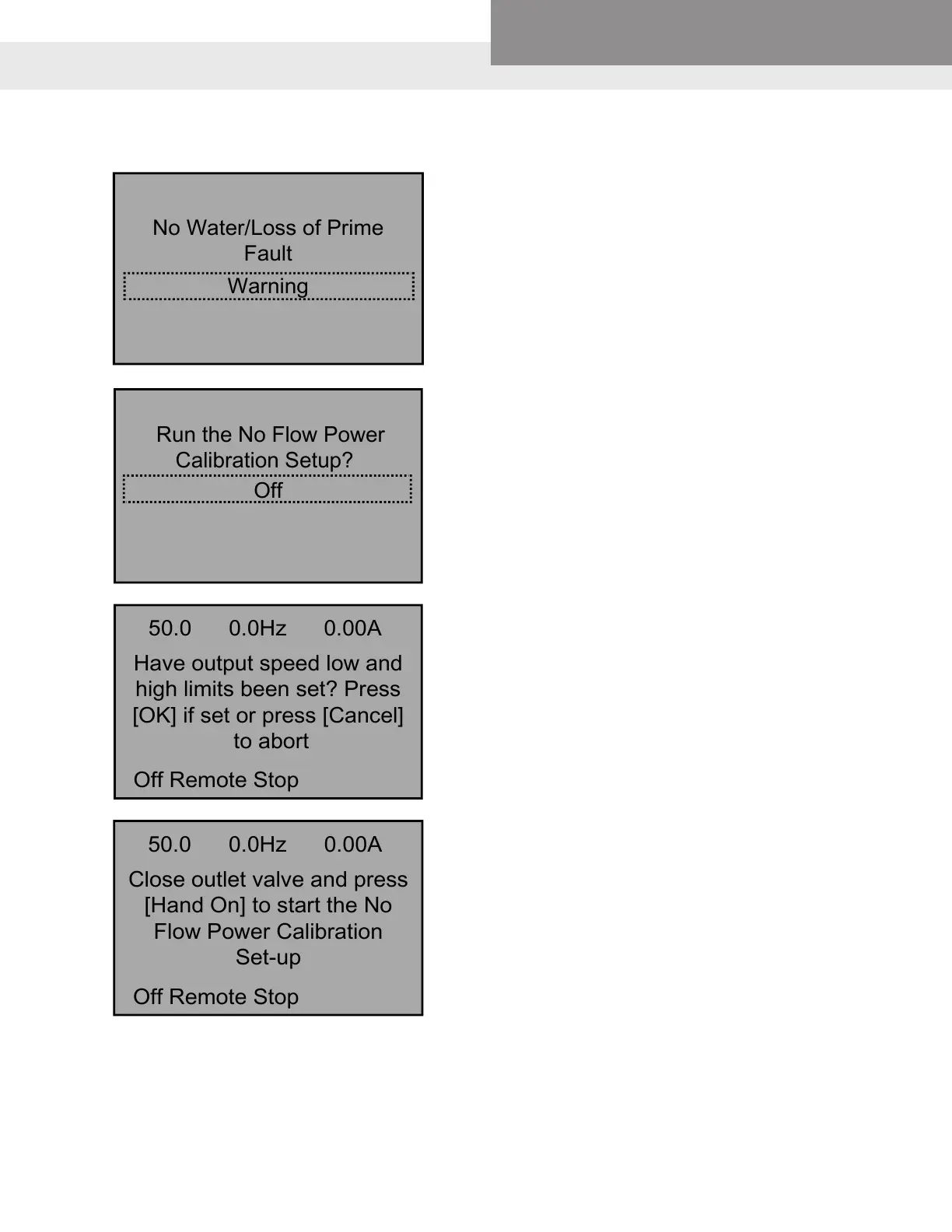

No Water/Loss of Prime
Fault
Warning
Off
Run the No Flow Power
Calibration Setup?
50.0 0.0Hz 0.00A
Have output speed low and
high limits been set? Press
[OK] if set or press [Cancel]
to abort
Off Remote Stop
50.0 0.0Hz 0.00A
Close outlet valve and press
[Hand On] to start the No
Flow Power Calibration
Set-up
Off Remote Stop
Select Alarm for No Water Loss of Prime Fault
Select Enable for No Flow Power Calibration
Follow all on-screen instructions carefully.
WARNING: The No Flow Power Calibration
Process requires the pump to be operated at
no ow. This can produce high pressure within
the system. Ensure the system piping and
components are designed to withstand the
suction pressure plus shutoff head pressure
produced by the pump prior to starting the
calibration process.
Close outlet valve before starting.
The drive will now run through steps 1-5.
