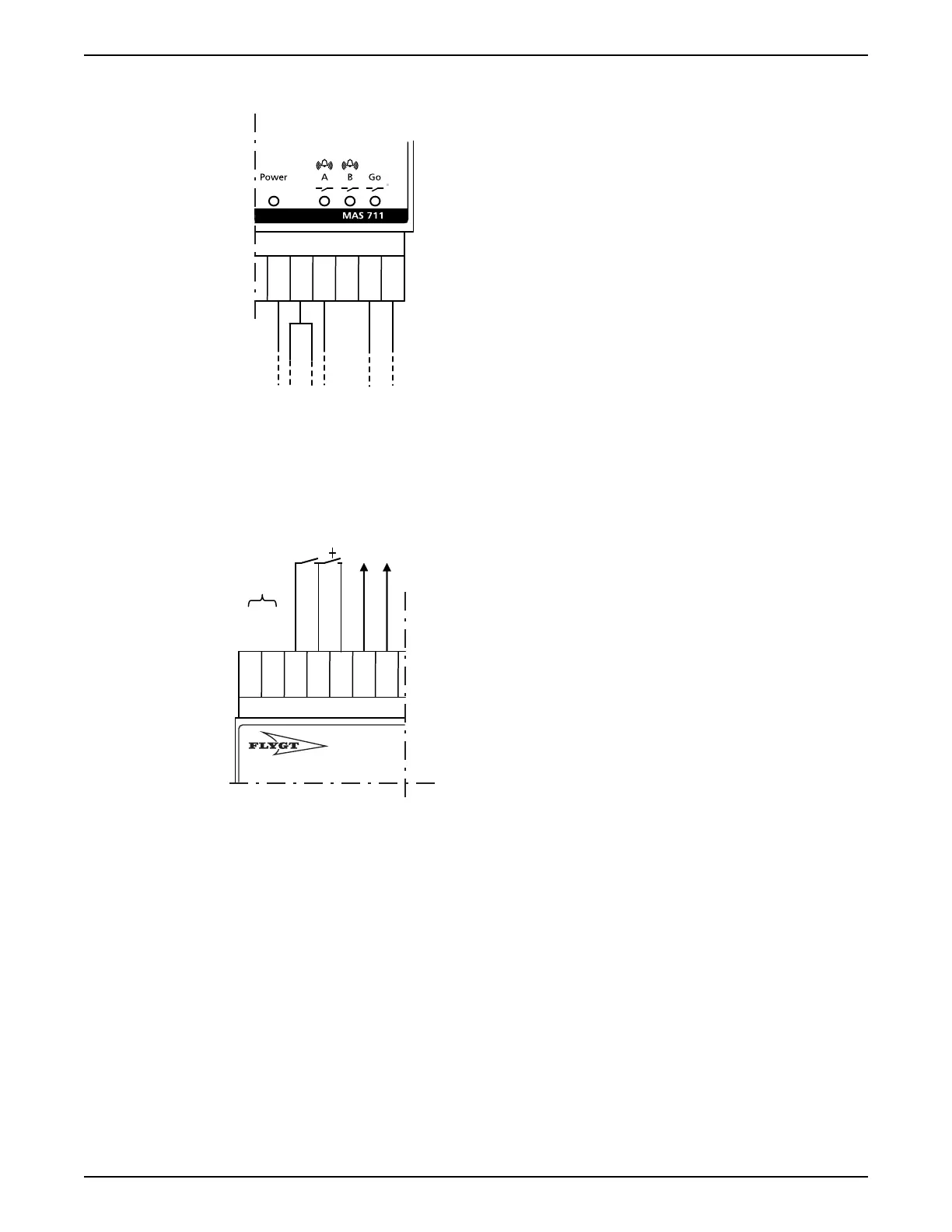

5.4 Connect the relay outputs
33 32 31 30 29 28 27
GOA B
WS009537A
1. Connect the GO relay.
2. Connect the alarm relays, A and B.
5.5 Connect the power supply, and the additional inputs and
outputs
26 25 24 23 22 21 20
– /Gnd
+
+
Gnd
WS009535A
1. Connect the base unit power supply to terminals 25 and 26.
2. Connect the additional inputs to terminals 22, 23, and 24.
3. Connect the additional output that is configurable to terminals 20 and 21.
5 Electrical Installation
MAS 711 Installation, Operation, and Maintenance Manual 17
