Xylem hydrovar hv 1.1 - Differential Pressure Transmitter PD 39 M

10

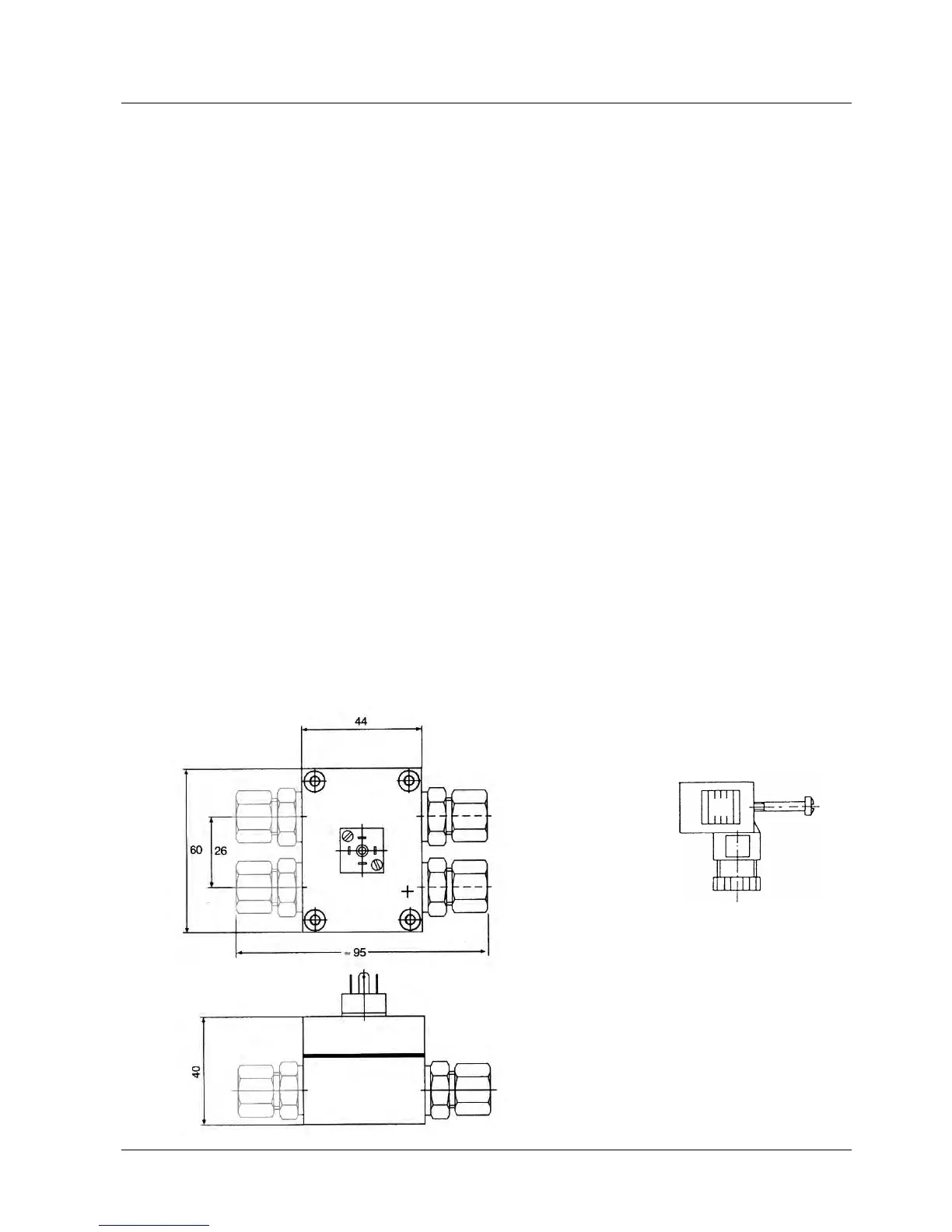

4.2 Differential Pressure Transmitter
Series PD 39 M
The sensors of this differential pressure transmitter are two piezoresistive silicon pressure
sensors, mounted on a tape (TAP) freely floating in an oil chamber. The pressure is
transferred to the sensor by a separate steel diaphragm in the oil chamber.
Specifications
Range(FS):
4 bar
differential
Over-pressure- Pmax:
16 bar single-sided
Class of protection : IP 65
Output Signal: 0,5 – 4,5 V DC (ratiometric)
Supply: 5 VDC +/- 10 %
Load Resistance: > 5 kΩ
Linearity:: ±0.20 % FS; max. ±0.5% FS
Stability: ±0.1 % FS; max. ±0.2% FS
Operating temperature: -10...+80°C
Storage Temperature: -40...+80°C
Material: Body and diaphragm: 1.4435 Stainless steel
Screw joint and cover: Steel electroplated for Emetorpipe d=8mm
Plug: mPm 193
Incl. 2m cable:
Out (white)
+ Vcc (brown)
GND (green)
Screen
P -
P +
