6.1.2 Mechanical mounting
Variant for HV1.1
1. Remove the motor fan cover from
your 3-phase motor by removing the
mounting screws.
2. Put the mounting and distance ring
(1) between the fan cover and the
Hydrovar and fix them together with
the screw (3) by using the included
washer(2).
3. Use the fan cover screws to mount
the fan cover/Hydrovar combination
to the motor
Attention:
Don’t forget the washer between the screw and the motor fan cover!

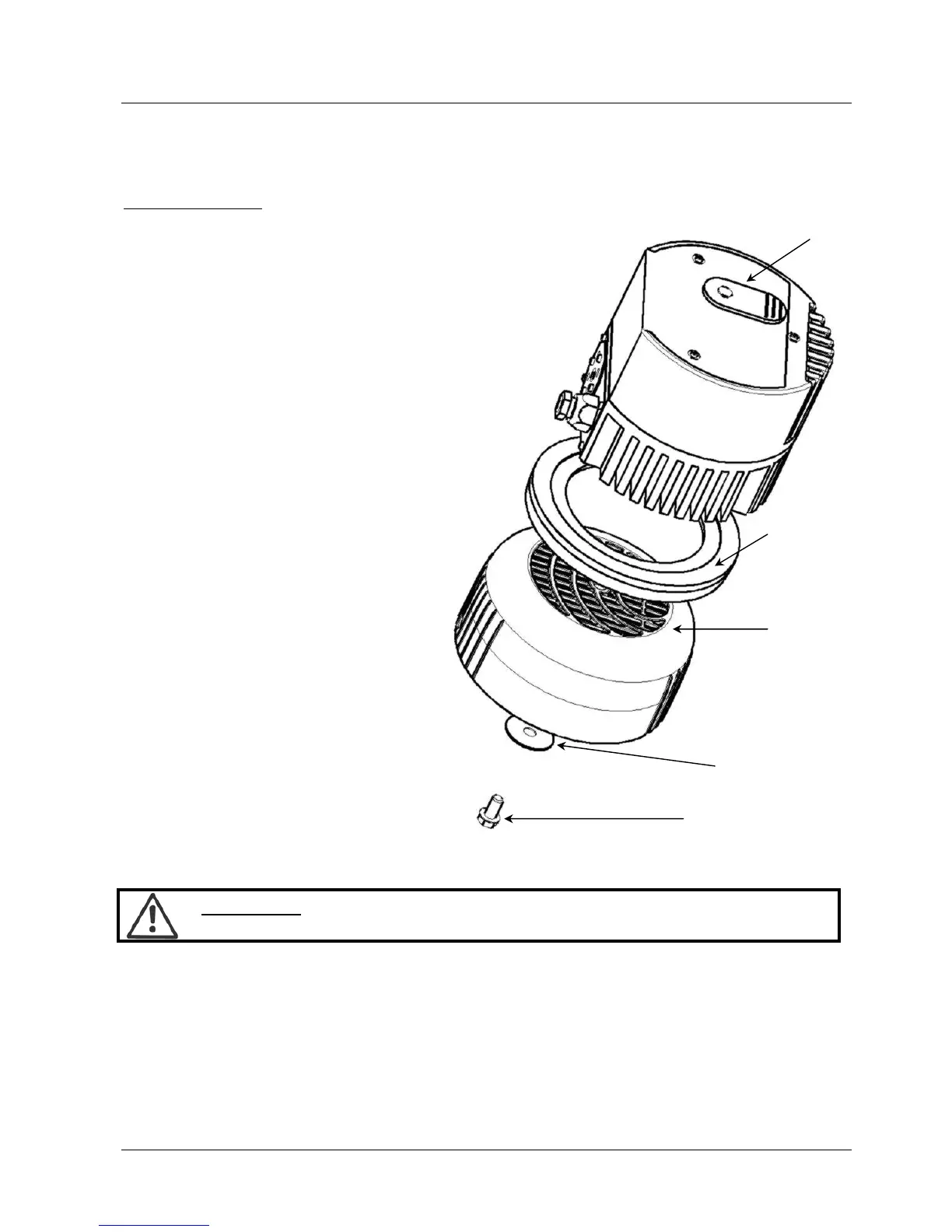

Hydrovar
(1) mounting
and distance
ring
motor fan
cover
(2) washer
(3) screw
