6.1.4 Mounting of the pressure transducer
In the delivery of the pressure transducer there are included:
1. The transducer has an mechanical connection of G ¼”. If it is necessary put the reducer
(3/8” – 1/4”) into the pump or pipe by using included gaskets.
2. Electrical connection to the Hydrovar see chapter (6.2.4)

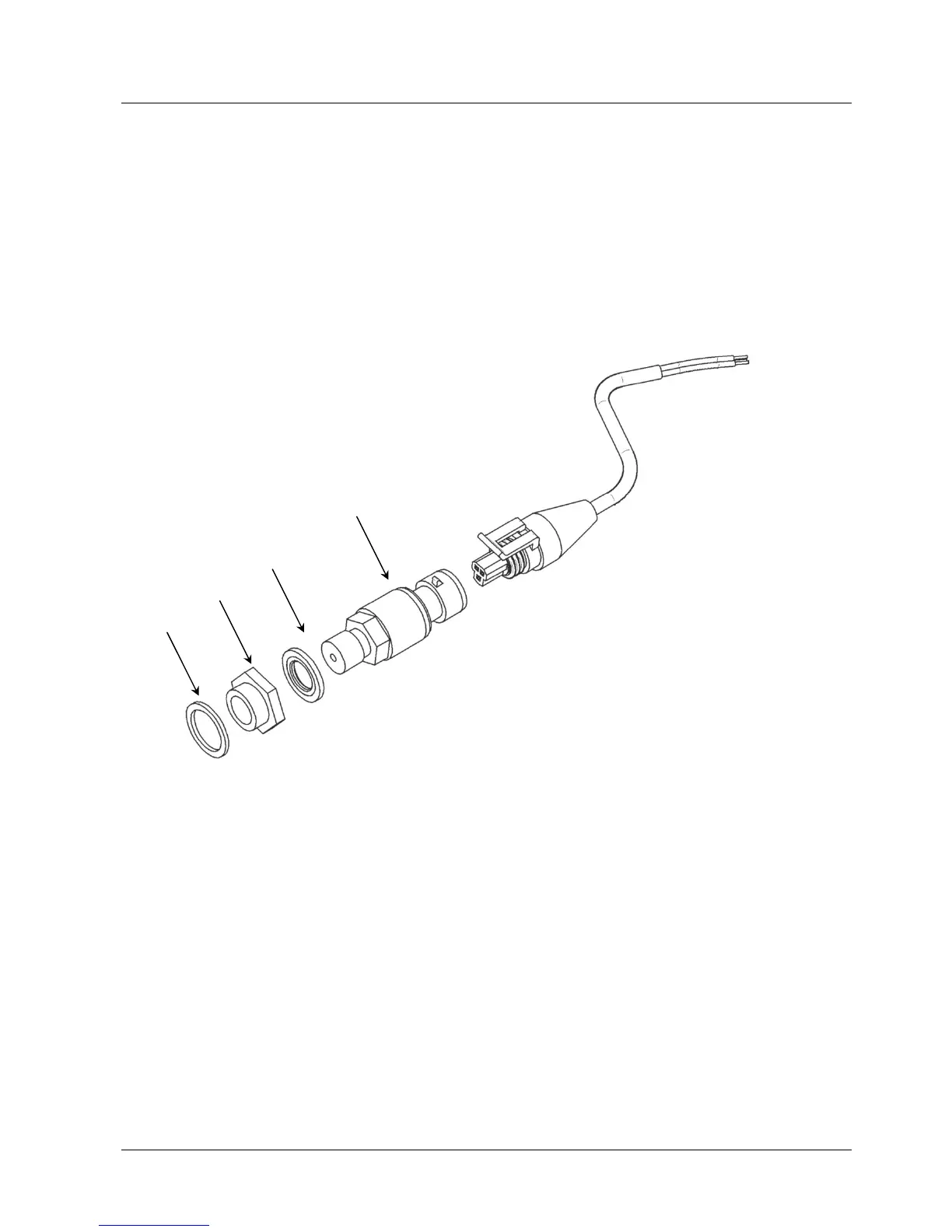

(1) pressure transducer
(2) gasket
(3) reducer
3
/
8
“ – ¼“
(4) brass gasket
(4)
(1)
(2)
(3)
