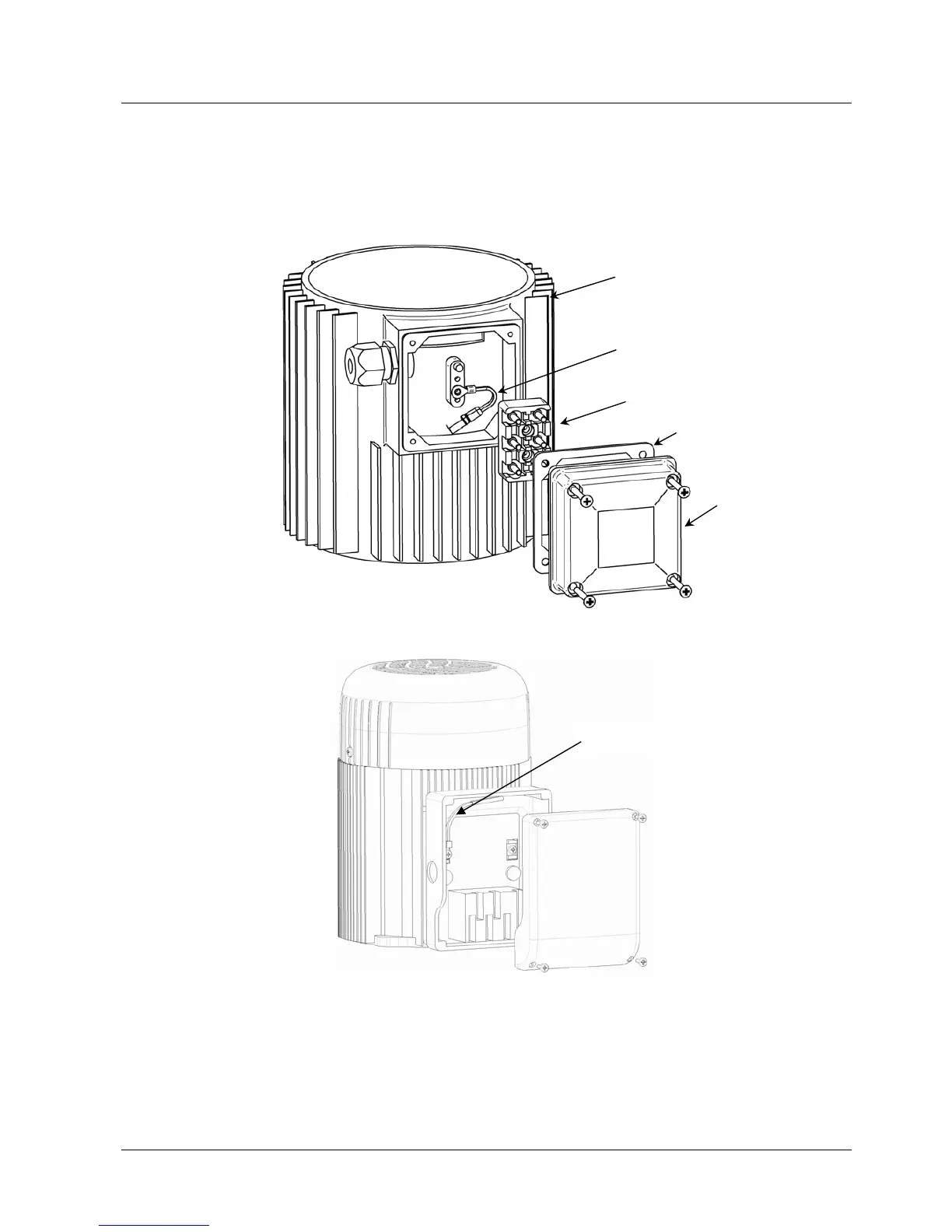

6.1.3 Mounting the thermistor (4)
Variant A:
Variant B:
1. Open the cover of the conduit box and remove also the terminal block inside.
2. Fix the thermistor (Variant A or B)
3. Electrical connection of the motor cables see chapter 7.3.
motor
thermistor
terminal block
rubber gasket
cover of the
conduit box
Thermistor
