EN 2.10 Shuttle Manual 1712

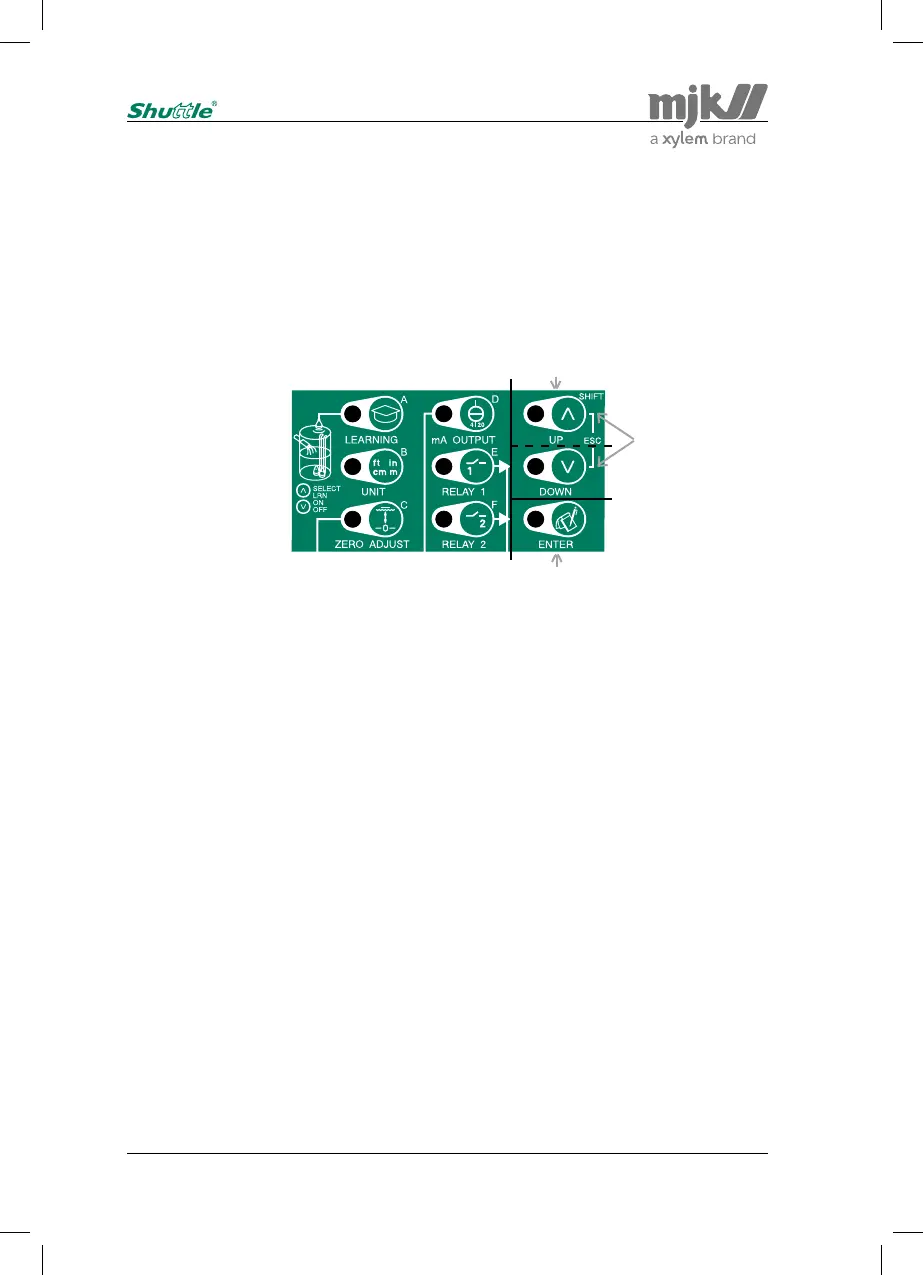

Display and keyboard
The keyboard
From the Shuttle
®
keyboard the keys marked A - F (➀) gives access to 21 menus divided in
6 basic settings and 15 special settings.
There is direct access to the menus for basic settings by pressing one the keys A to F.
See appendix E for instructions for access to the special settings.
When a menu has been selected, settings are made with the UP and DOWN keys and
the selection is confirmed with the ENTER key (
➃) whereafter Shuttle
®
reverts to normal
read-out. To leave any menu without changing the settings, press the UP and DOWN keys
simultaneously (ESCape, ➂).
➀ ➁
➂
➃
Basic settings
A (LEARNING)
Start and activation/deactivation of the
learning function.
B (UNIT)
Selection of measuring unit.
C (ZERO ADJUST)
Setting of sensor distance and zero
point.
D (mA OUTPUT)
Setting of the mA output.
E (RELAY 1)
Setting of the functions for relay
output # 1.
F (RELAY 2)
Setting of the functions for relay
output # 2.
(see pages 14 - 29)
Special settings
Shift + A (bA - bar graph readout)
Shift + B (rA - Active measuring range)
Shift + C (rE - response time for level
changes)
Shift + D (AP - Application setup)
Shift + E (S. Err - System error indication)
Shift + F (LE - Level readout calibration)
Esc + A (nAP - Setting of reference level)
Esc + B (Qu - Indication of signal quality)
Esc + C (Sh - Indication of signal amplifi-
cation)
Esc + D (dE - Period without echo)
Esc + E (Choose sensor)
Esc + F (FA - Factory settings)
AxsC + A (S. Ln - HW/SW/Serial numbers)
AxsC + B (S.St - Find zero level at next
power-up)
AxsC + C (12nA - Constant mA signal out)
AxsC + D (nS - Investigative measurements
interval)
AxsC + E (S. Al - System alarm delay)
(see Appendix E)
