Xylem MJK Shuttle - The Well Is Empty; The Well Is Not Empty

15
SW 838023
EN 2.10 Shuttle Manual 1712
Display and keyboard

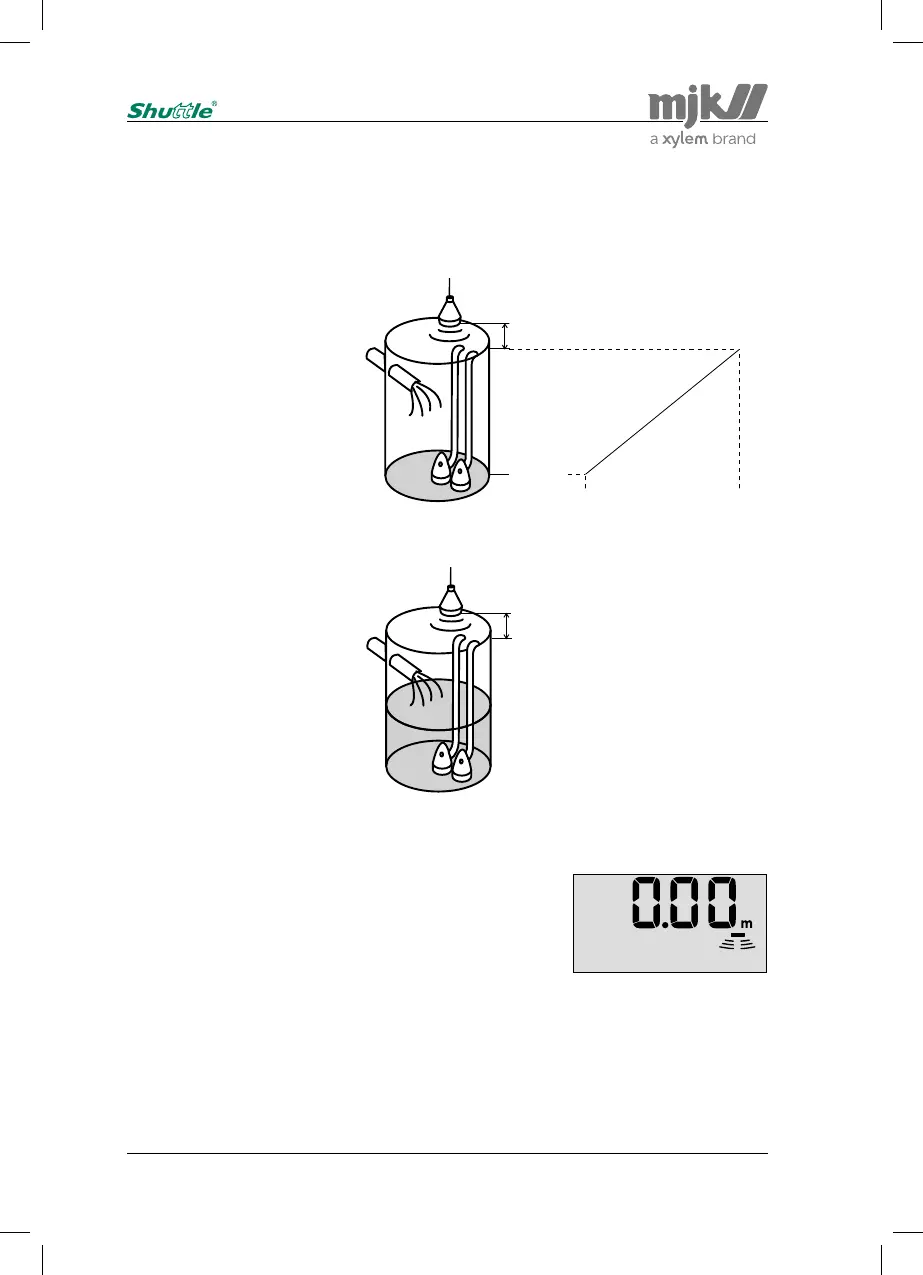

- the well is empty…
- the well is not empty…
The distance from the sen-
sor to the zero point or the
level read-out must be set
manually - see page 18.
Note: The dead band
varies for the different
sensor types: 35 cm for
types 200570, 200640 and
200660, and 80 cm for type
200630.
0.00 m
4 mA 20 mA
35 cm from sensor (types 200570,
200640 and 200660)
80 cm from sensor (type 200630)
Shuttle
®
will now indicate the current level in the tank or well
(0 m immediately after initial startup) and is now in service
as a regular level meter, i.e. without the use of the relays and
the analog output for control / alarm.
See the next section for basic settings.
35 cm from sensor
Level read-out = distance
between sensor and bottom
- (minus) the distance be-
tween sensor and surface.
At the same moment Shuttle
®
registers an echo, the zero point is automatically set to the
level that is present in the tank or well.
Furthermore, the mA output is set to 4 mA at the current zero point and 20 mA at a level cor-
responding to a distance of 35 cm from the ultrasonic sensor.
See also Appendix A, Technical Specifications begining on
page 37.
