37
SW 838023
EN 2.10 Shuttle Manual 1712

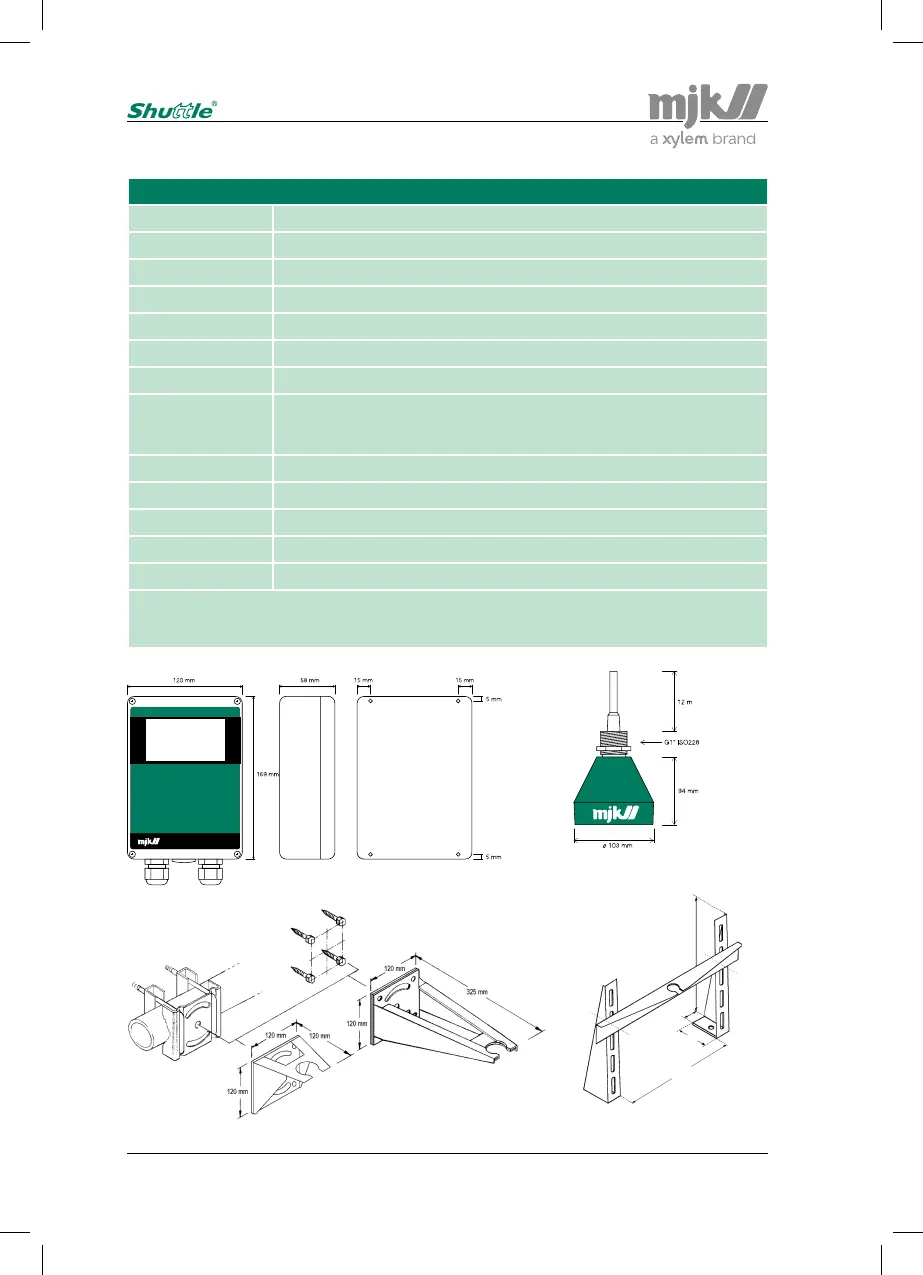

Appendix
A Technical specifications
Dimensions
Shuttle
®
Level Transmitter
Shuttle
®
Ultrasonic Sensor
Universal bracket
Standard sensor bracket
Short sensor bracket
Sensor bracket for channel or flume
550 / 950 mm
115 mm
50 mm
500 mm
Shuttle
®
Level Transmitter
Measuring range 0 - 25 m
Span From 0 - 10 cm to 0 - 25 m
Power supply 230 / 115 V AC, 10 - 30 V DC
Consumption 2 W
Temperature - 20 to + 60 °C
Input From ultrasonic sensor
Accuracy
Better than ± 0,2% ➀
Outputs Analogue: 1 pc. 4 - 20 mA, max. 500 Ω loop impedance.
Digital: 2 pcs. relays with connect or disconnect function (NO/NC).
Max. 50 V DC, 1 A ohmic / 50 V AC, 50 VA.
Display LCD with 4 digits and symbols
Operation Function keys behind the front cover
Humidity Range max. 90 % r.H. not condensating
Enclosure IP67
CE approvals EN 50081-1, EN 50082-1
➀
The accuracy is stated for the selected measuring range with the sensor mounted 35 cm above highest possible
level and with subsequent calibration of level readout as explained on page 52 and when measuring on an even
surface without foam build-up or other disturbing objects.
