Xylem MJK Shuttle - Extended Range Version

40
EN 2.10 Shuttle Manual 1712
SW 838023
Appendix
9090
6060
3030
0
-40
-30
-20
-10dB

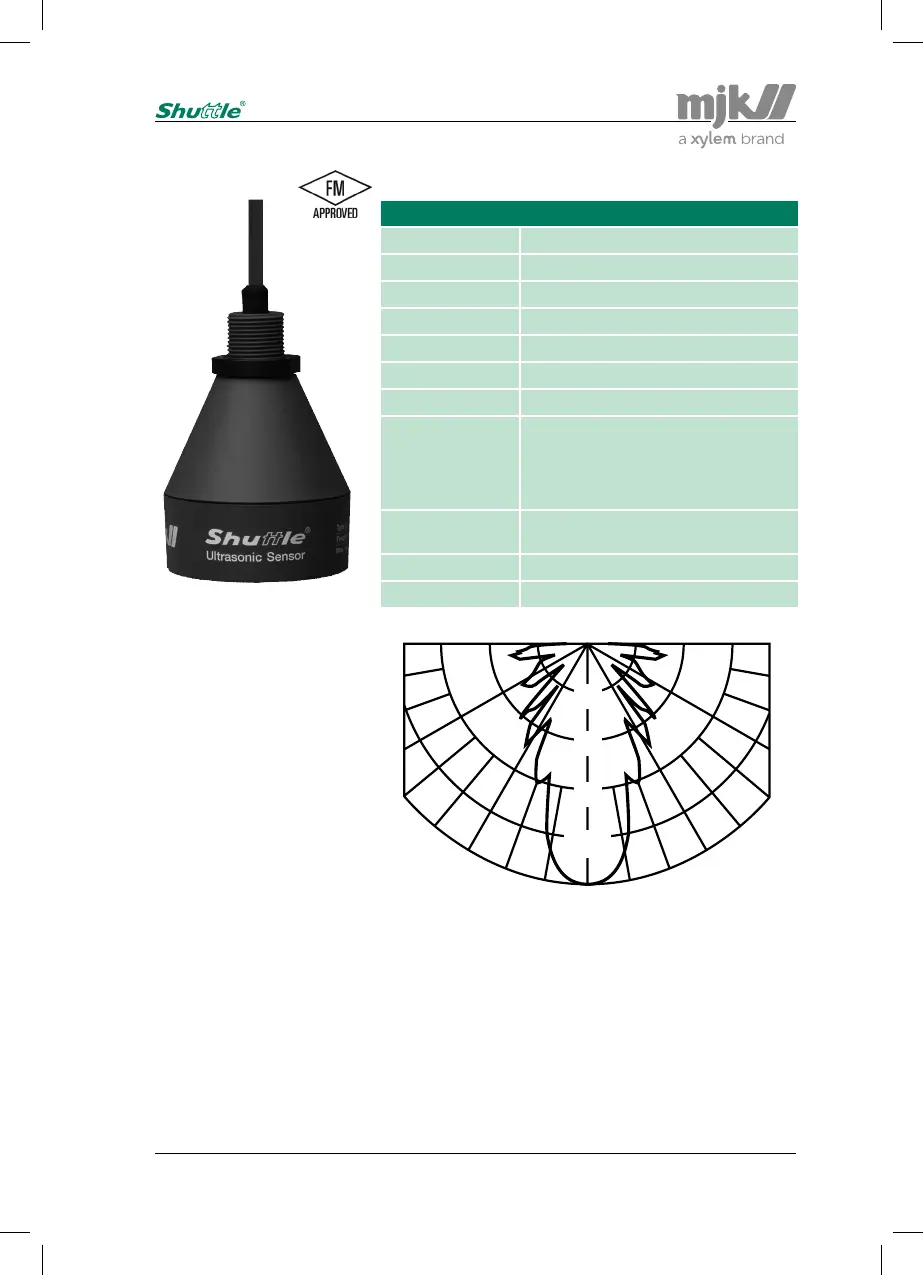

Extended Range Version
Shuttle
®
Ultrasonic Sensor Types 200630 / 200631
Measuring range 25 m (liquids), 10 m (solids)
Frequency 30 KHz
Spread 6 °
Dead band 80 cm
Sensitivity See figure below
Temperature - 20 to + 60 °C
Materials VALOX
Cable 200630:
Cable 200631:
Shielded, insuated with oil resistant PVC,
length 12 m.
Shielded, insuated with oil resistant PVC,
length 50 m
(Max. 100 m with 690010 cable)
Enclosure IP 68, water-proof, withstands sub-
merging, max. 1 bar
CE approvals EN 50081-1, EN 50082-1
Ex approvals FM Class 1, Div. 1, Group A-G
