Display and keyboard

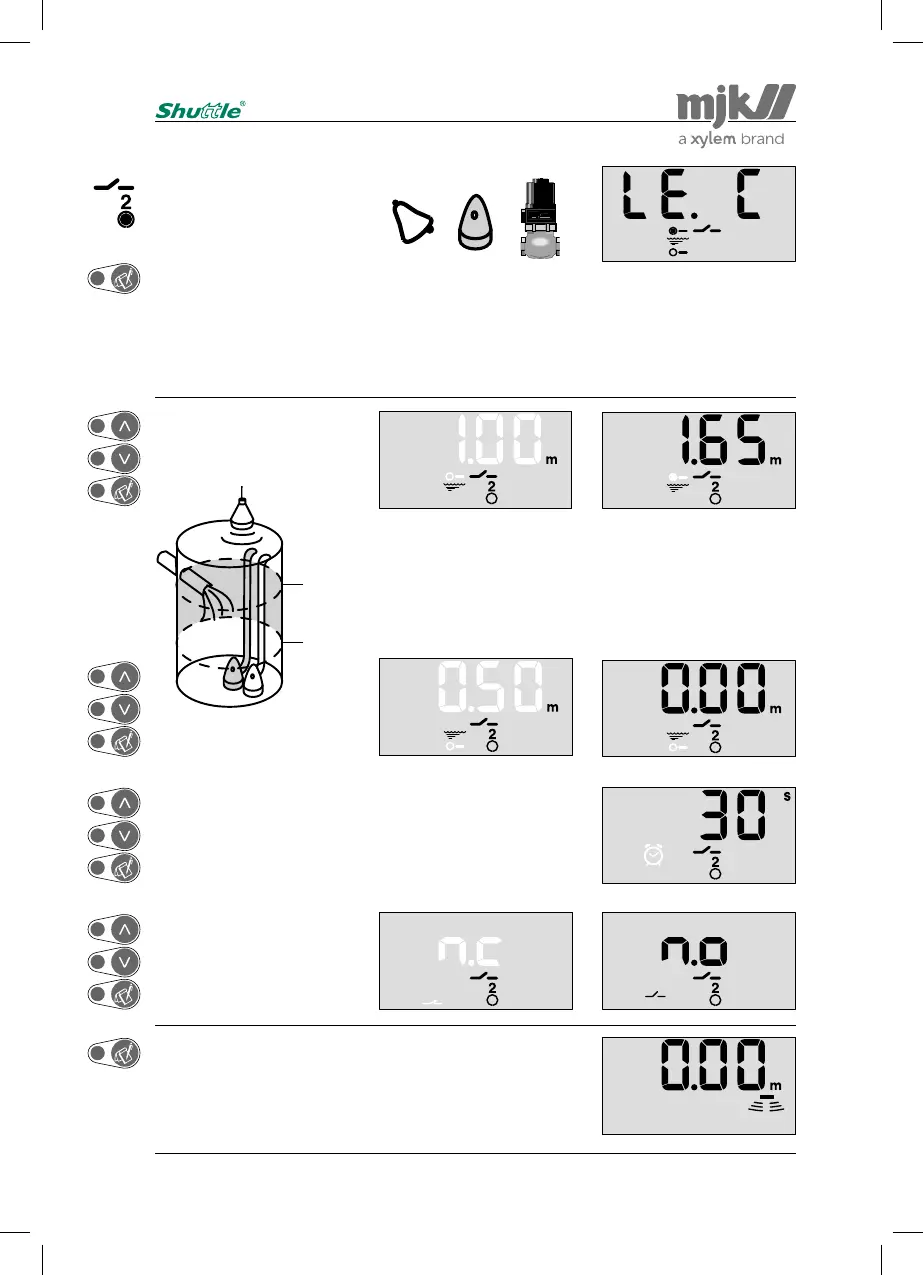

Level control with relay 2
Shuttle
®
reverts to normal read-out.
0,50 m
1,00 m
Select relay mode.
('n.c' = normally closed,
'n.o' = normally open).
Select the time delay.
In this menu the level for activation (set) of relay 1 is changed from 1,65 to 1,00 m and deac-
tivation (reset) of the relay output is changed from 0.00 to 1.50 ft.
Select the activation (set)
level with the arrow keys.
Select the deactivation
(reset) level with the arrow
keys.
