Display and keyboard
Level control with relay 1
Shuttle
®
reverts to normal read-out.
0,50 m
(deactivate)
1,00 m
(activate)
Select relay mode.
('n.c' = normally closed,
'n.o' = normally open).
Select the time delay.

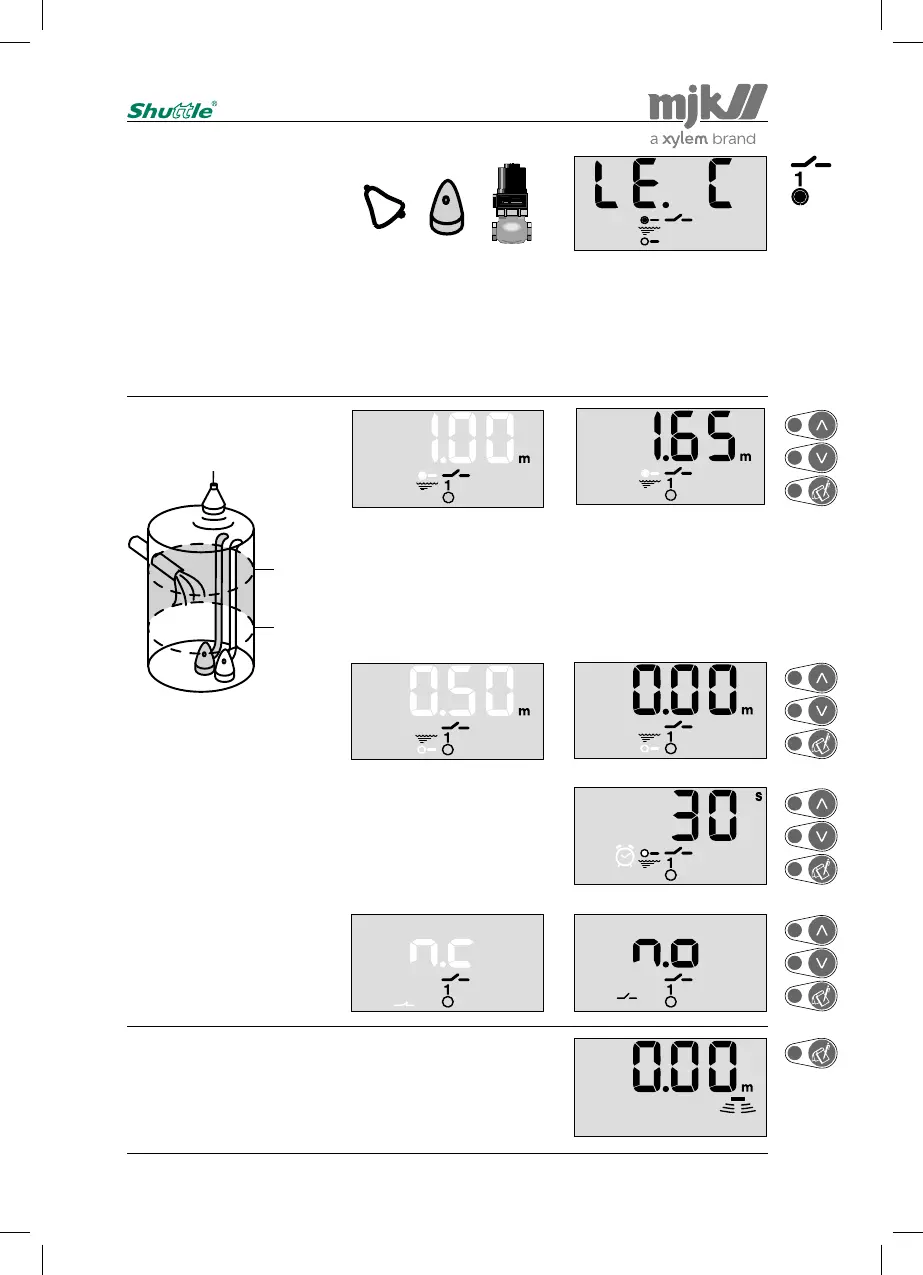

In this menu the level for activation (set) of relay 1 is changed from 1,65 to 1,00 m and deac-
tivation (reset) of the relay output is changed from 0,00 to 0,50 m.
Select the activation (set)
level for relay 1 with the
arrow keys.
Select the deactivation (reset)
level for relay 1 with the ar-
row keys.
