3.3.1 Inserting the rechargeable batteries
CAUTION
Make sure that the poles of the rechargeable batteries are posi-
tioned correctly.
The
± signs on the batteries must correspond to the ± signs in the
battery compartment.
3.3.2 Connecting the power pack / charging the batteries
CAUTION
The line voltage at the operating site must lie within the input volt-
age range of the original power pack (see section 7.1).
CAUTION
Use original power packs only (see section 7.1).
CAUTION
The batteries in the battery compartment are automatically
charged when the power pack is connected.

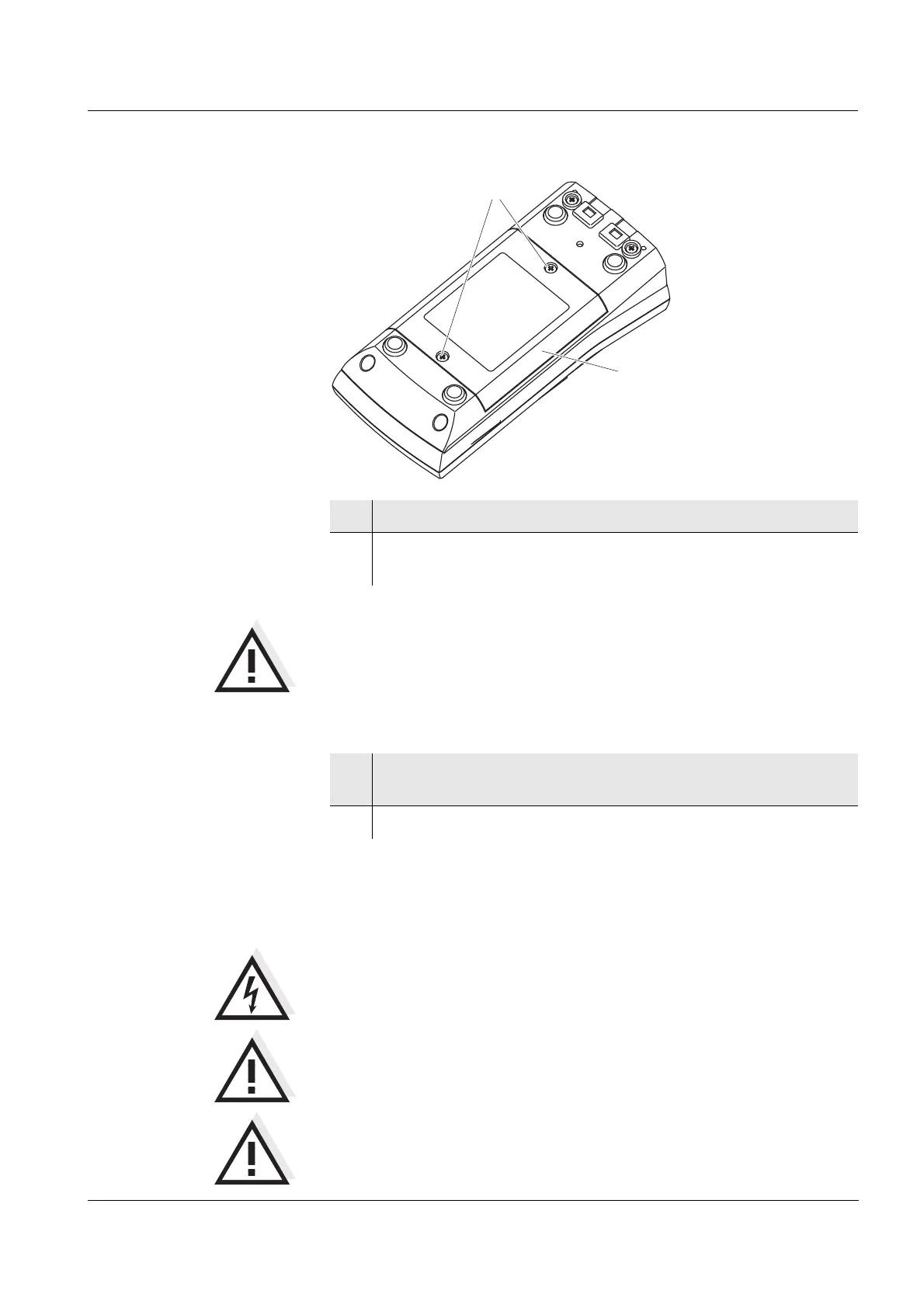

1 Unscrew the two screws (1) on the underside of the meter.
2 Open the battery compartment (2) on the underside of the
meter.
3 Place four rechargeable batteries (type Mignon AA) in the bat-
tery compartment.
4 Close the battery compartment (2) and tighten the screws (1).
2
1
