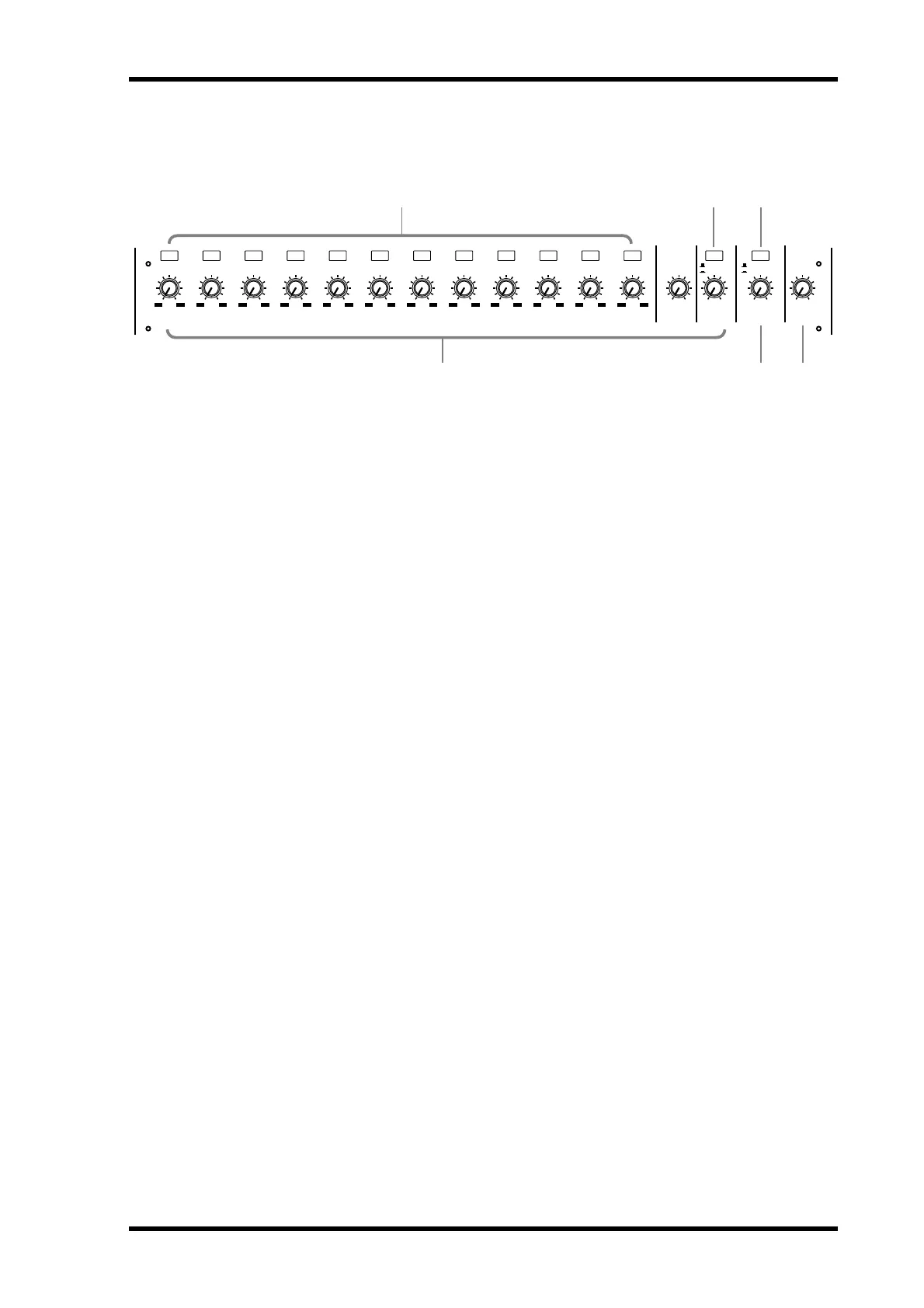

Analog Control Section
A PAD switches
These switches are used to turn on and off the 26 dB input pads. See “Pad Switches” on
page 41 for more information.
B 15/16–2TR IN Switch
This switch is used to select the signal source for input channels 15 and 16: phone jacks
15 and 16 (15/16) or the 2TR IN phono jacks (2TR IN).
C MONITOR–2TR IN Switch
This switch is used to select the signal source for the monitor out and phones: Monitor
bus (MONITOR) or 2TR IN phono jacks (2TR IN).
D GAIN controls
These controls are used to adjust the gain of the input preamps. See “Setting Input
Channel Gain” on page 41 for more information.
E MONITOR OUT LEVEL control
This control is used to adjust the monitor out level.
F PHONES LEVEL control
This control is used to adjust the phones level.
