Yamaha DM2000 Service Manual

53
DM2000
Display tube A
Display tube B (2/2)
Display tube B (1/2)
[150D] x 18
[150C] x 4 [150B] x 21
[150A] x 24
[180C] x 4
[180B] x 4
[150E] x 8
[180A] x 4
PN3
PN2 (2/2) PN2 (1/2)
PN1
PN4

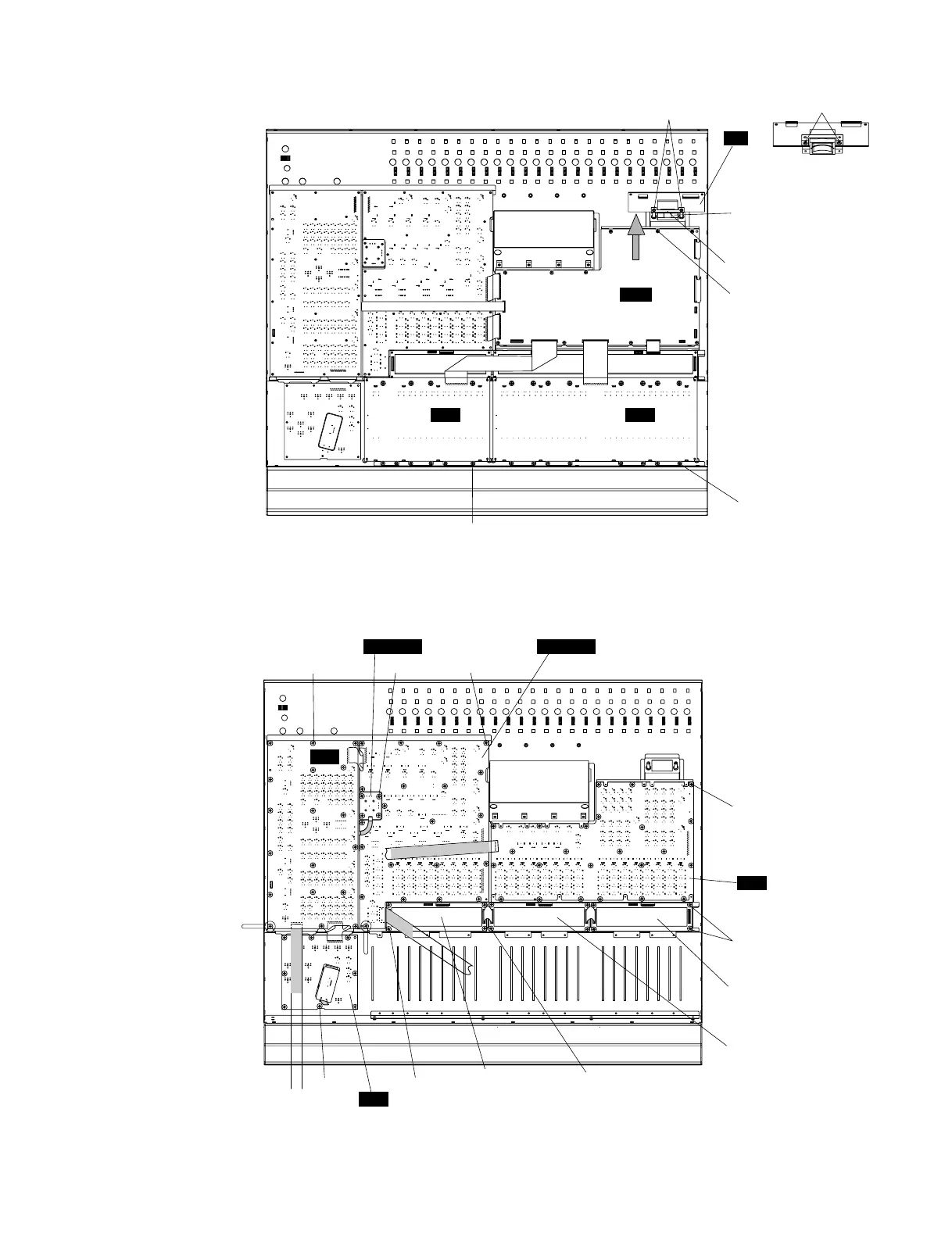

<Bottom view>
A
Smart media escutcheon
Smart media angle bracket
[270B]
[265]
[200B] x 10
[230A] x 16
[230B] x 10
DS
SUB
FD1FD2
A view (Back side)
<Bottom view>
[200B]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[230]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[265]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[270B]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
Fig.10
Fig.11
[150]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)
[180]: Bind Head Tapping Screw-B 3.0X8 MFZN2BL (EP600190)

Yamaha DM2000 Specifications

General

Type	Digital Mixing Console
Channels	96
Sampling Rate	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Bit Depth	24-bit
Aux Sends	12
Matrix	8 x 8
EQ Bands	4-band parametric
Word Clock	Yes
Effects	Internal Effects Processors
Digital I/O	AES/EBU, ADAT
Display	LCD
