21
English
IN
IN
PREOUT/MAIN IN
FRONT
REAR
(SURROUND)
SUB
WOOFER
SPLIT
CENTER
IN
CENTER
OUT
MAIN
IN
MAIN
OUT
MONO
REAR CTR
RB-
2320
RS
232C
OUT
REMOTE 1
REMOTE 2
CTRL
OUT
+5V
20mA
100Ω

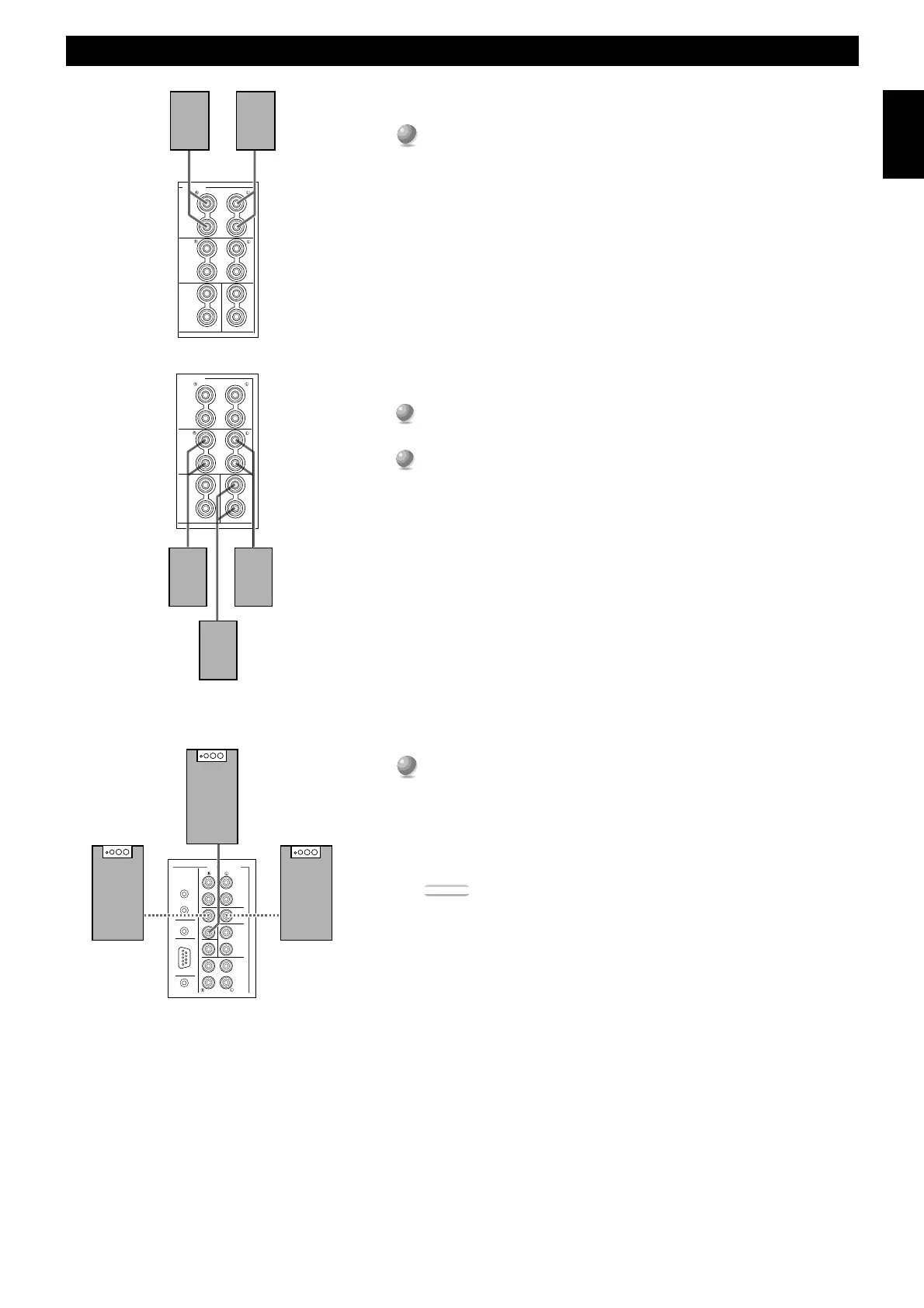

■ Connecting the Front Effect Speakers
Connect the + and – terminals of your right and left Front Effect
speakers to the L and R FRONT + and – terminals on this unit.
■ Connecting the Rear and Rear Center Speakers
1
1
Connect the + and – terminals of your right and left Rear speakers to
the L and R REAR + and – terminals on this unit.
2
2
Connect the + terminal of your Rear Center speaker to the REAR
CENTER + terminal and the – terminal of your Rear Center speaker
to REAR CENTER – terminal.
■ Connecting a Front Subwoofer
Connect the signal input jack on your subwoofer to the PRE OUT/
MAIN IN SUBWOOFER MONO jack.
By connecting two Subwoofers to the SUBWOOFER SPLIT jacks, this
unit can reproduce subtle directional changes in the low frequency sounds.
When you use two Subwoofers, connect both of them to the SUBWOOFER
SPLIT jacks using pin plugs.
Caution:
• The SUBWOOFER jacks (output) have a built-in high cut-off filter (90 Hz). When
using a powered subwoofer, set the high cut-off frequency to “MAX” on your
Subwoofer.
Hookups
SPEAKERS
FRONT
REAR
CENTER REAR CENTER
+
–
+
–
+
–
+
–
+
–
+
–
SPEAKERS
FRONT
REAR
CENTER REAR CENTER
+
–
+
–
+
–
+
–
+
–
+
–
Right Front
Effect Speaker
Left Front
Effect Speaker
Right Rear
Speaker
Left Rear
Speaker
Rear Center Speaker
Subwoofer system
Right
Subwoofer
system
Left
Subwoofer
system
To Next Page
