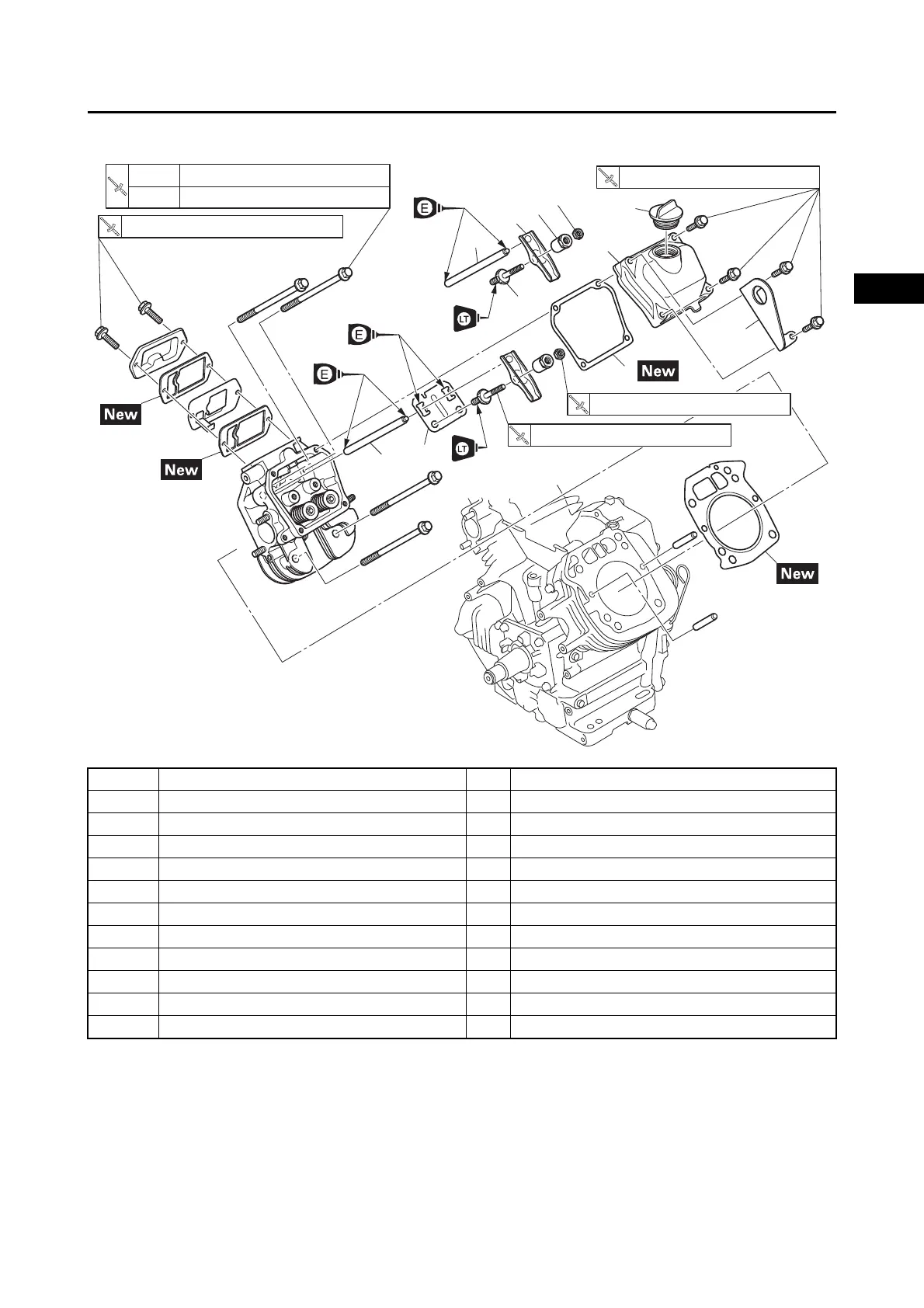

CYLINDER HEAD COVERS, CYLINDER HEADS
3-27
1
2
3
4
5
6
7
8
9
10
ENGINE
Order Job/Parts to remove Q’ty Remarks
1 Oil filler cap 1
2 Engine hanger 1
3 Cylinder head cover 1
4Gasket 1
5 Locknut 2
6 Adjuster 2
7 Rocker arm 2
8 Push rod 1 Intake side
9 Push rod 1 Exhaust side
10 Pivot bolt 2
11 Push rod guide 1
1
2
3
4
5
6
7
8
9
10
11
8 N・m (0.8 kgf・m, 5.9 lb・ft)
45 N・m (4.5 kgf・m, 33 lb・ft)
25 N・m (2.5 kgf・m, 18 lb・ft)
3.9 N・m (0.39 kgf・m, 2.9 lb・ft)
8 N・m (0.8 kgf・m, 5.9 lb・ft)
18 N・m (1.8 kgf・m, 13 lb・ft)
1st
2nd
