OIL FILTER CARTRIDGE, THERMOSTAT, AND
EXHAUST COVER
OIL FILTER CARTRIDGE, THERMOSTAT, AND EXHAUST COVER

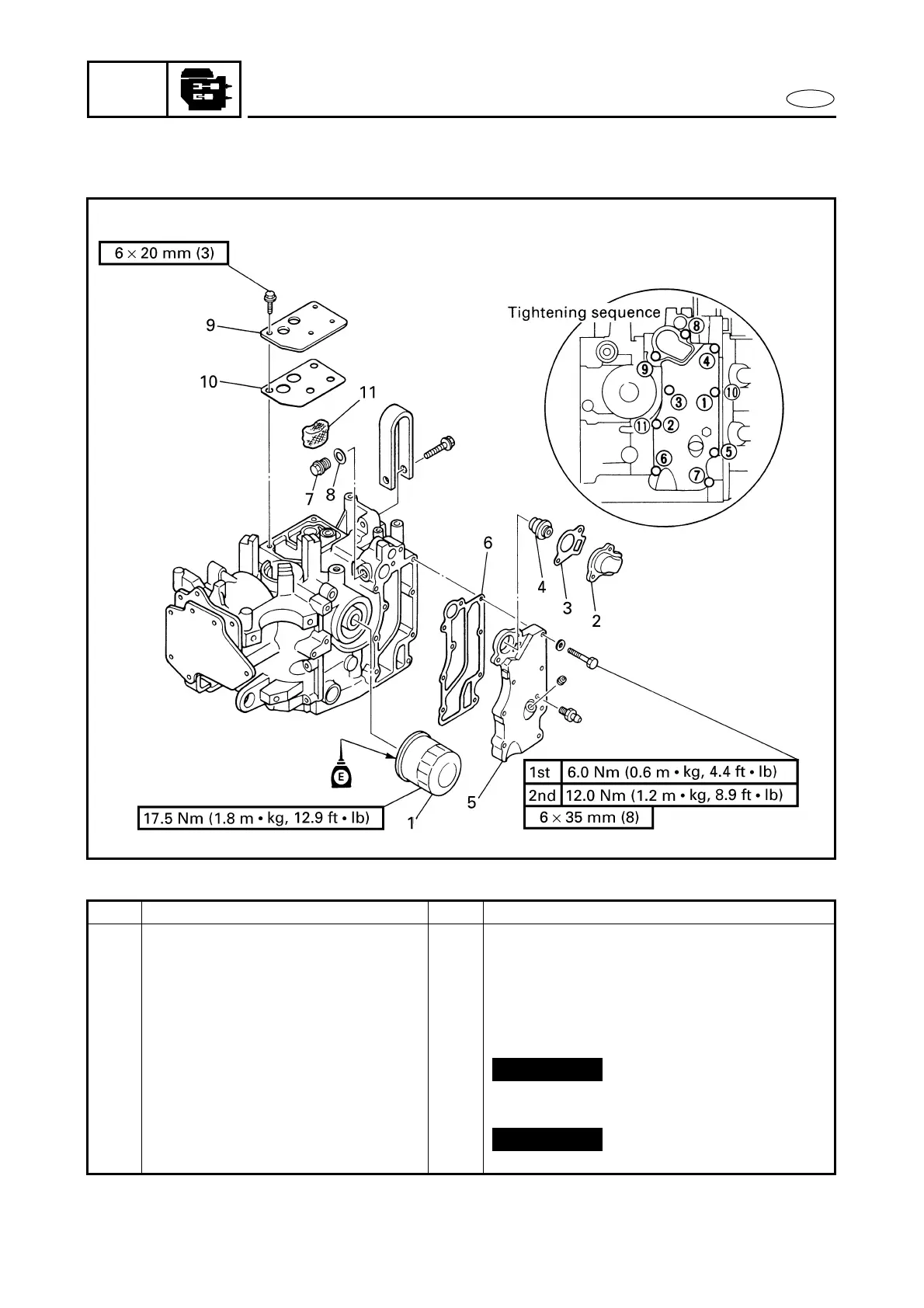

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
OIL FILTER CARTRIDGE, THER-
MOSTAT, AND EXHAUST
COVER REMOVAL
Follow the left “Step” for removal.
Flywheel magneto cover assy. Refer to “FLYWHEEL MAGNETO”.
1 Oil filter cartridge 1
2 Thermostat cover 1
3 Gasket 1
4 Thermostat 1
5 Exhaust cover 1
6 Gasket 1
7 Straight plug 1
Not reusable
Not reusable
To Next Page
