7-10
E
BRKT
STEERING BRACKET
STEERING BRACKET

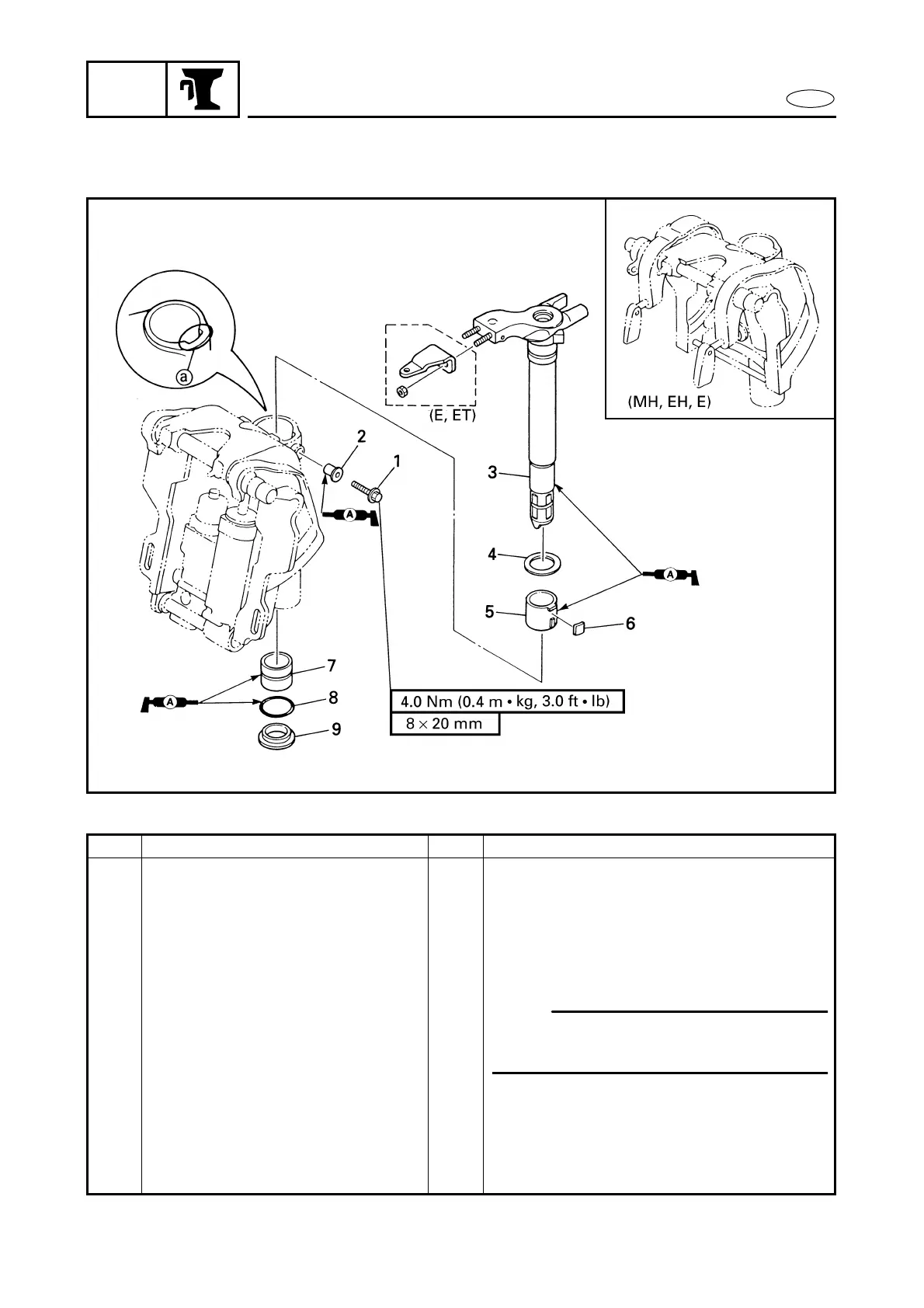

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
STEERING BRACKET REMOVAL
Follow the left “Step” for removal.
Upper case assy. Refer to “UPPER CASE ASSY.”.
1 Bolt 1
2 Rubber seal 1
3 Steering bracket 1
4 Washer 1
5 Bushing 1
6 Straight key 1
7 Bushing 1
8 O-ring 1 42.8
×
3.2 mm
9 Bushing 1
Reverse the removal steps for installation.
NOTE:
Align the projection on the bushing with
the slit a in the swivel bracket.
