8-2
E
–+
ELEC

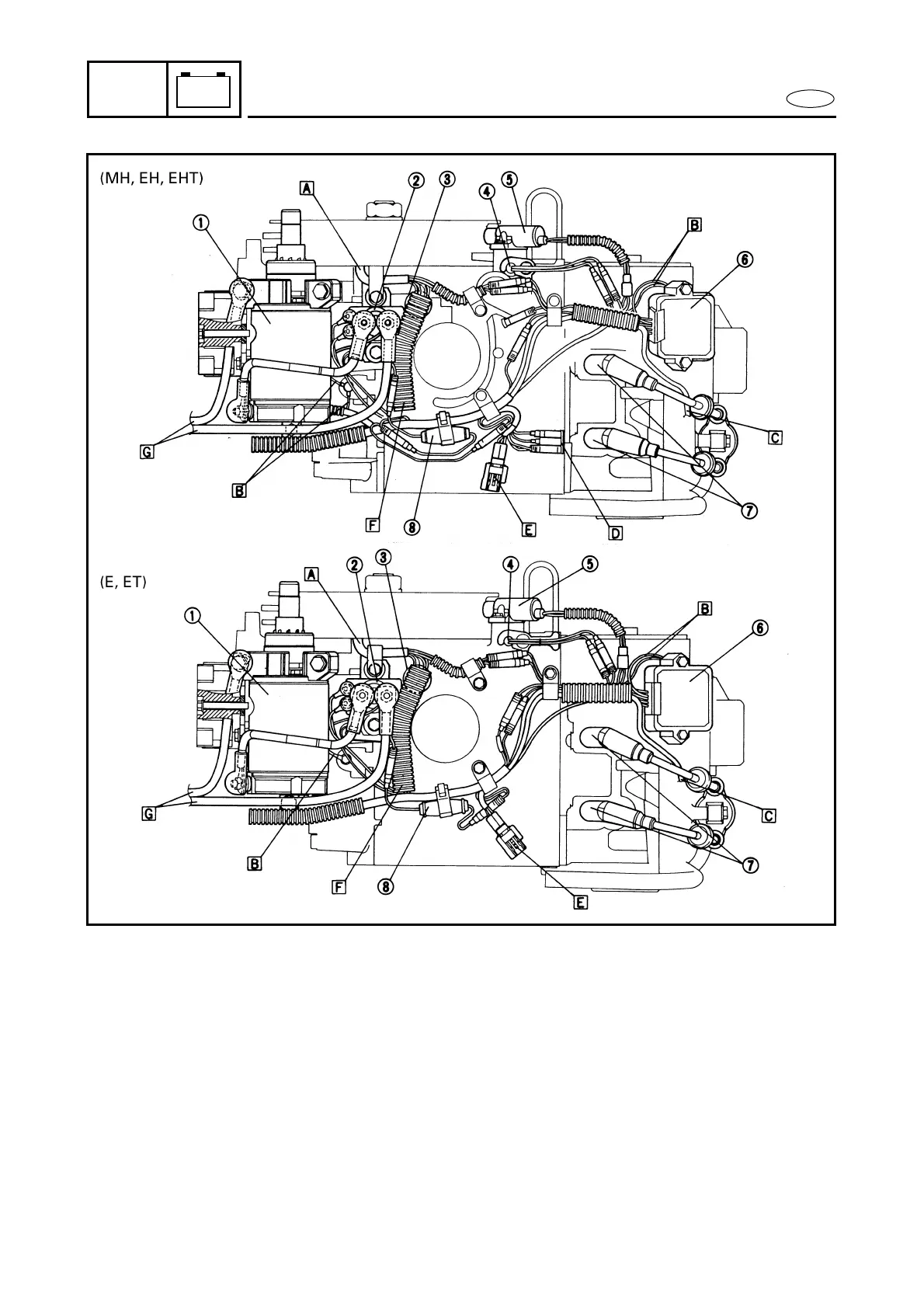

ELECTRICAL COMPONENTS
(Port side view)
1
Starter motor (EH, EHT, E, ET)
2
Starter relay (EH, EHT, E, ET)
3
Oil pressure switch
4
Engine temperature sensor
5
Pulser coil
6
Rectifier/regulator (EH, EHT, E, ET)
7
Spark plugs
8
Fuse (EH, EHT, E, ET)
Å
To stator coil
ı
Ground leads
Ç
To ignition coil
Î
Cap (EHT)
‰
To trailer switch (EHT, ET)
Ï
To wire harness
Ì
To battery (EH, EHT, E, ET)
