7-15
E
BRKT
CLAMP BRACKET
CLAMP BRACKET (EHT, ET)

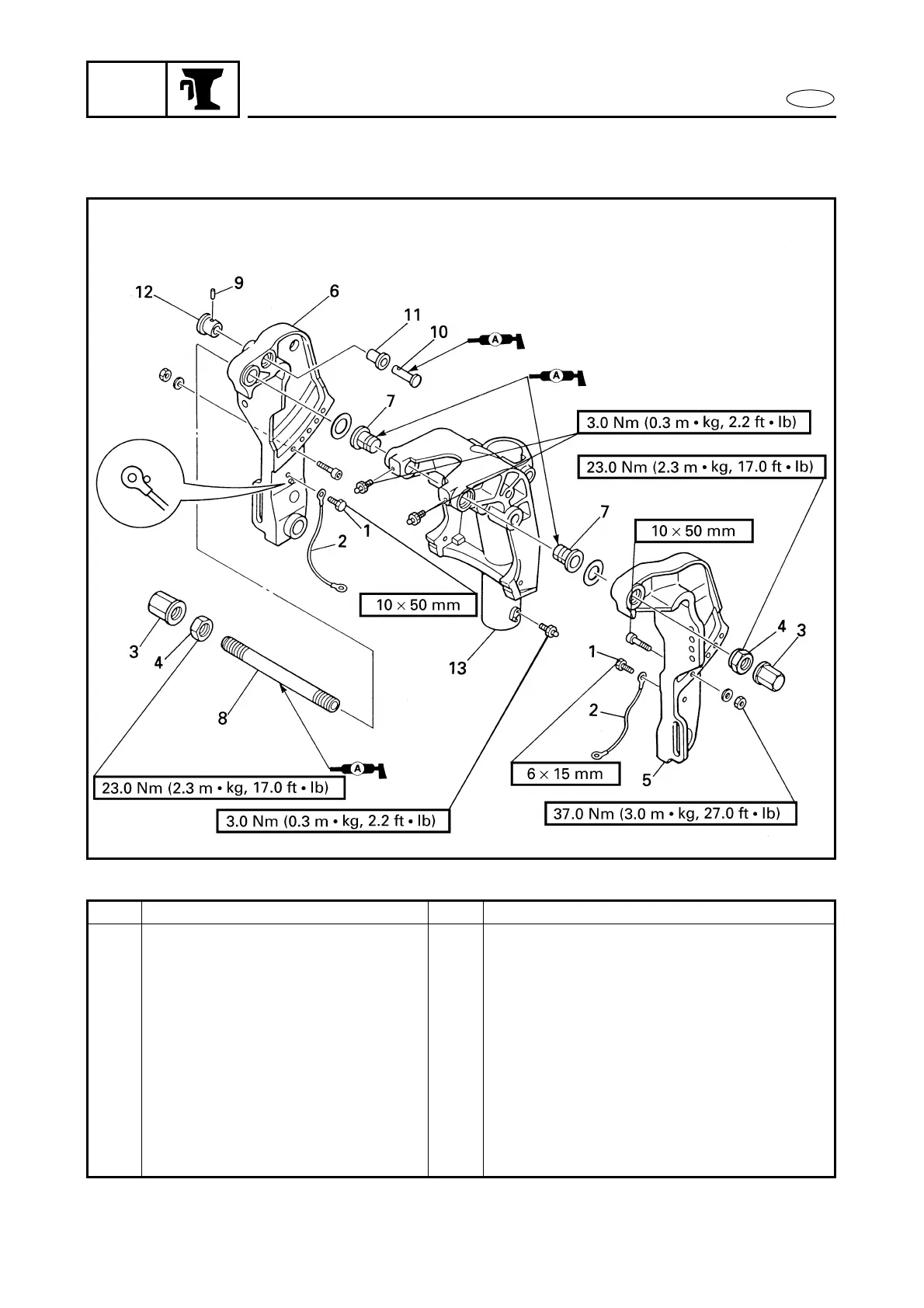

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
CLAMP BRACKET DISASSEMBLY
Follow the left “Step” for removal.
PTT unit
Refer to “POWER TRIM AND TILT (PTT)
UNIT”.
1
Bolt
2
2
Ground lead
2
3
Cap nut
2
4
Nut
2
5
Left clamp bracket
1
6
Right clamp bracket
1
7
Bushing
2
8
Shaft bolt
1
313
315
