4-5
E
FUEL
CARBURETOR
CARBURETOR

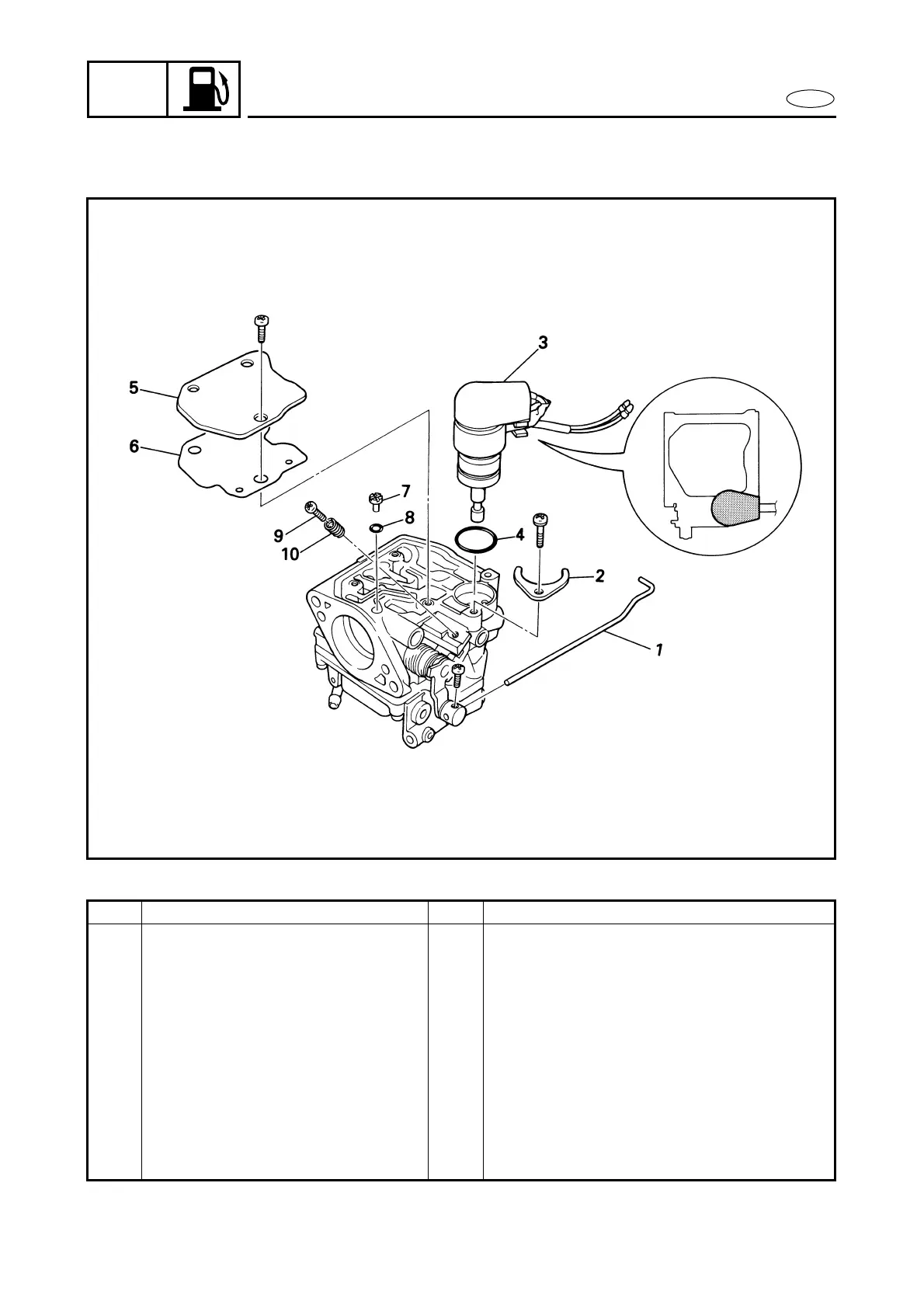

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
CARBURETOR DISASSEMBLY
Follow the left “Step” for removal.
1
Throttle link rod
1
2
Electrothermal ram retainer
1
3
Electrothermal ram
1
4
O-ring
1
5
Carburetor top cover
1
6
Gasket
1
7
Pilot outlet jet
1
8
O-ring
1
9
Throttle stop screw
1
10
Spring
1
99
