6-9
E
LOWR
PROPELLER SHAFT HOUSING ASSY.
PROPELLER SHAFT HOUSING ASSY.

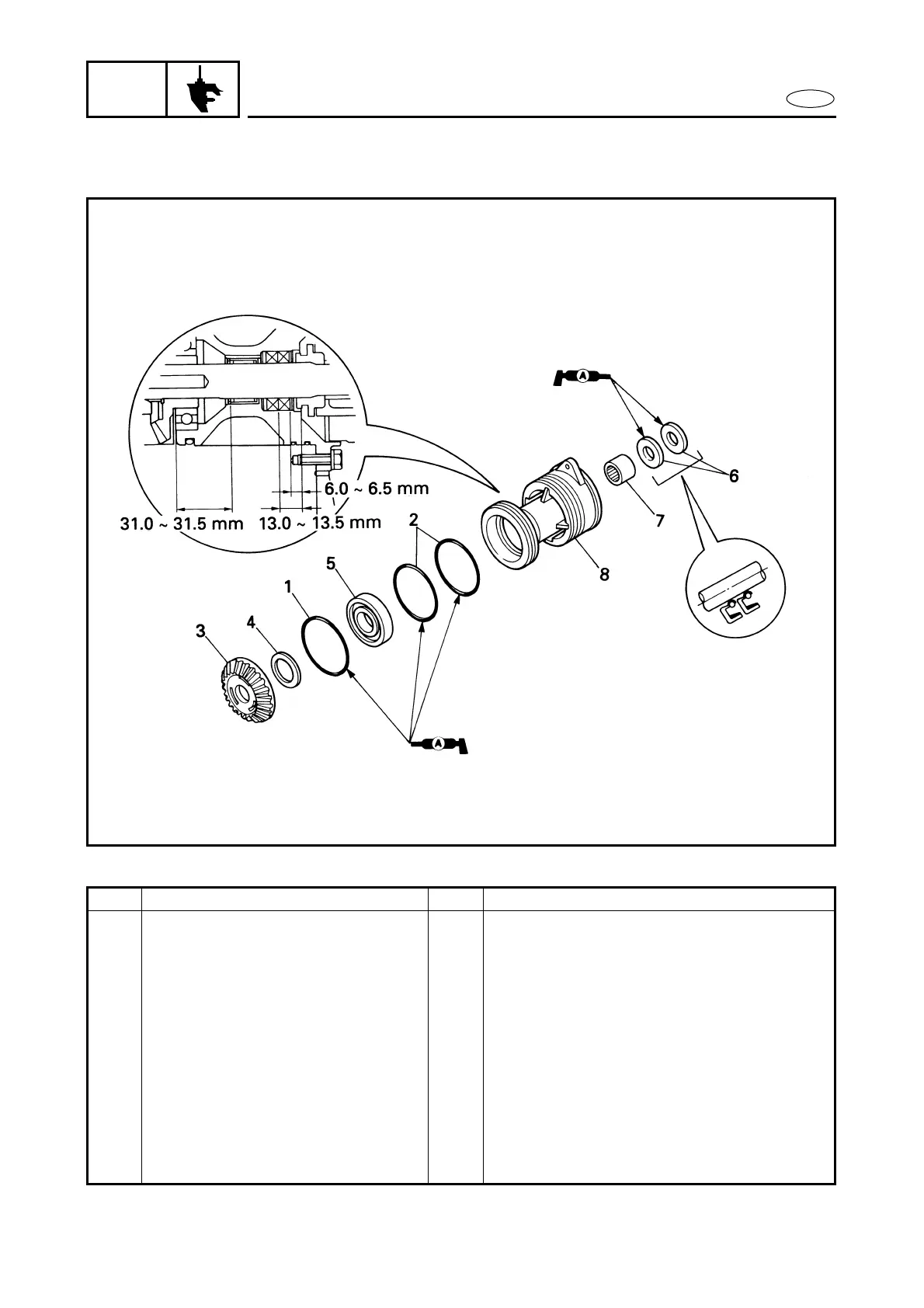

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
PROPELLER SHAFT HOUSING
ASSY. DISASSEMBLY
Follow the left “Step” for removal.
1
O-ring
1
63.6
×
3.9 mm
2
O-ring
2
65.0
×
2.4 mm
3
Reverse gear
1
4
Reverse gear shim
1
se
t
5
Ball bearing
1
6
Oil seal
2
7
Needle bearing
1
8
Propeller shaft housing
1
Reverse the disassembly steps for instal-
lation.
221
