7-19
E
BRKT
TILT ROD
TILT ROD

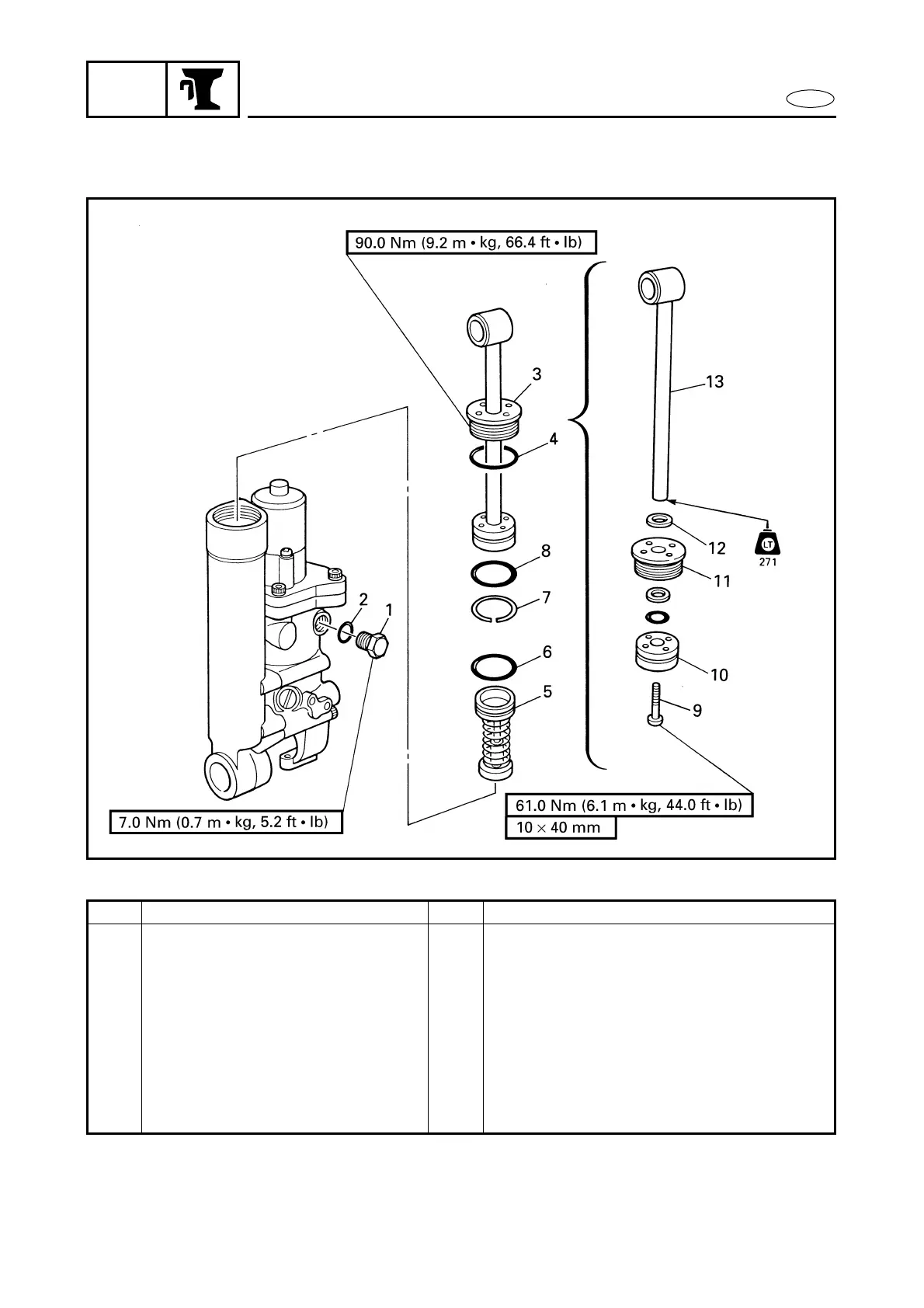

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
TILT ROD DISASSEMBLY
Follow the left “Step” for removal.
1
PTT fluid level check bolt
1
2
O-ring
1
8.8
×
1.9 mm
3
Tilt rod assy.
1
4
O-ring
1
44.8
×
2.5 mm
5
Free piston assy.
1
6
O-ring
1
38.7
×
3.5 mm
7
Backup ring
1
8
O-ring
1
38.7
×
3.5 mm
321
323
