4-2
E
FUEL

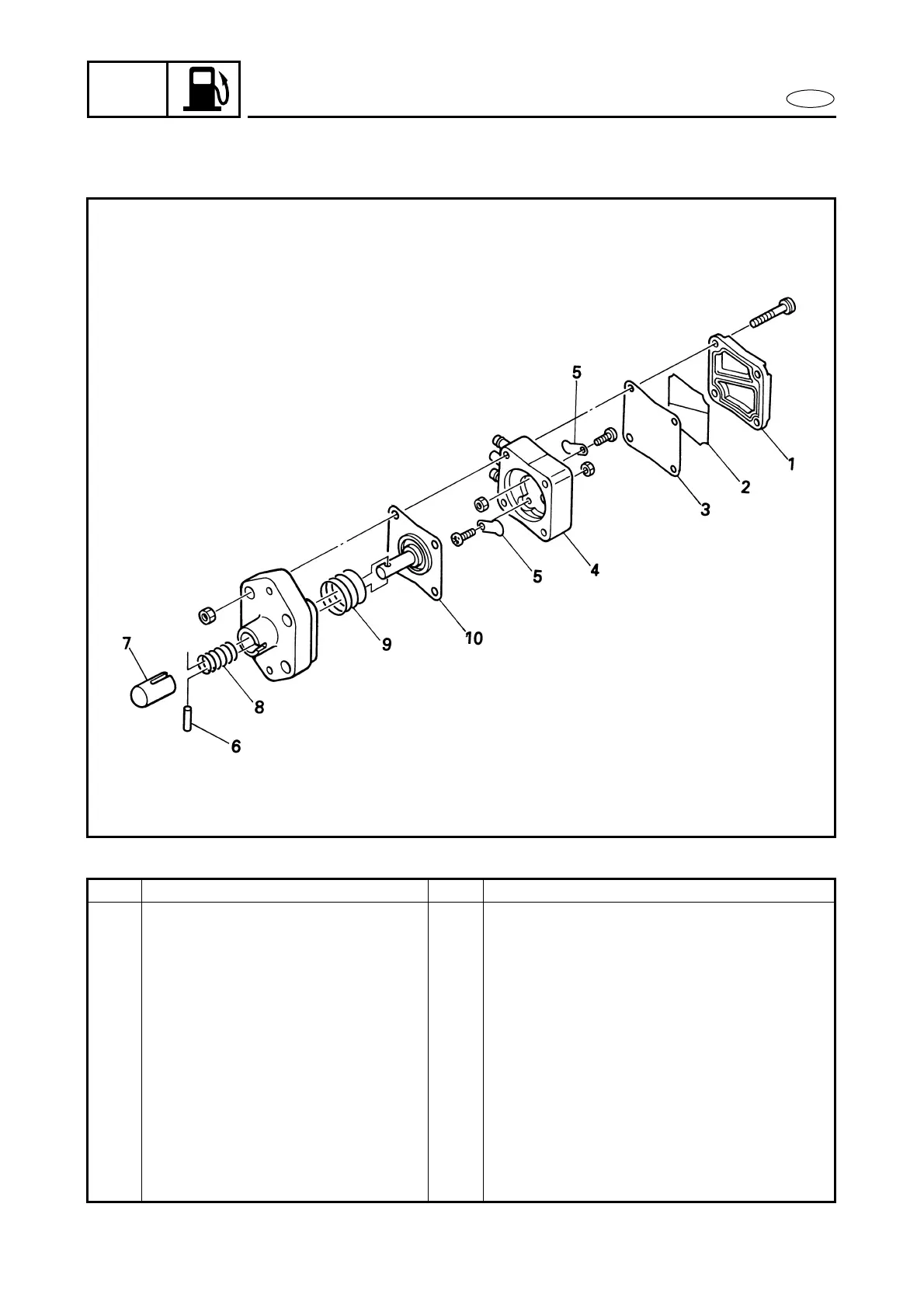

FUEL PUMP
FUEL PUMP
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty
Service points
FUEL PUMP DISASSEMBLY
Follow the left “Step” for removal.
1
Fuel pump cover
1
2
Packing
1
3
Diaphragm
1
4
Fuel pump body
1
5
Seat valve
1
6
Pin
1
7
Plunger
1
8
Plunger spring
1
9
Diaphragm spring
1
10
Diaphragm
1
Reverse the disassembly steps for instal-
lation.
