4-3
E
FUEL
CARBURETOR UNIT
CARBURETOR UNIT

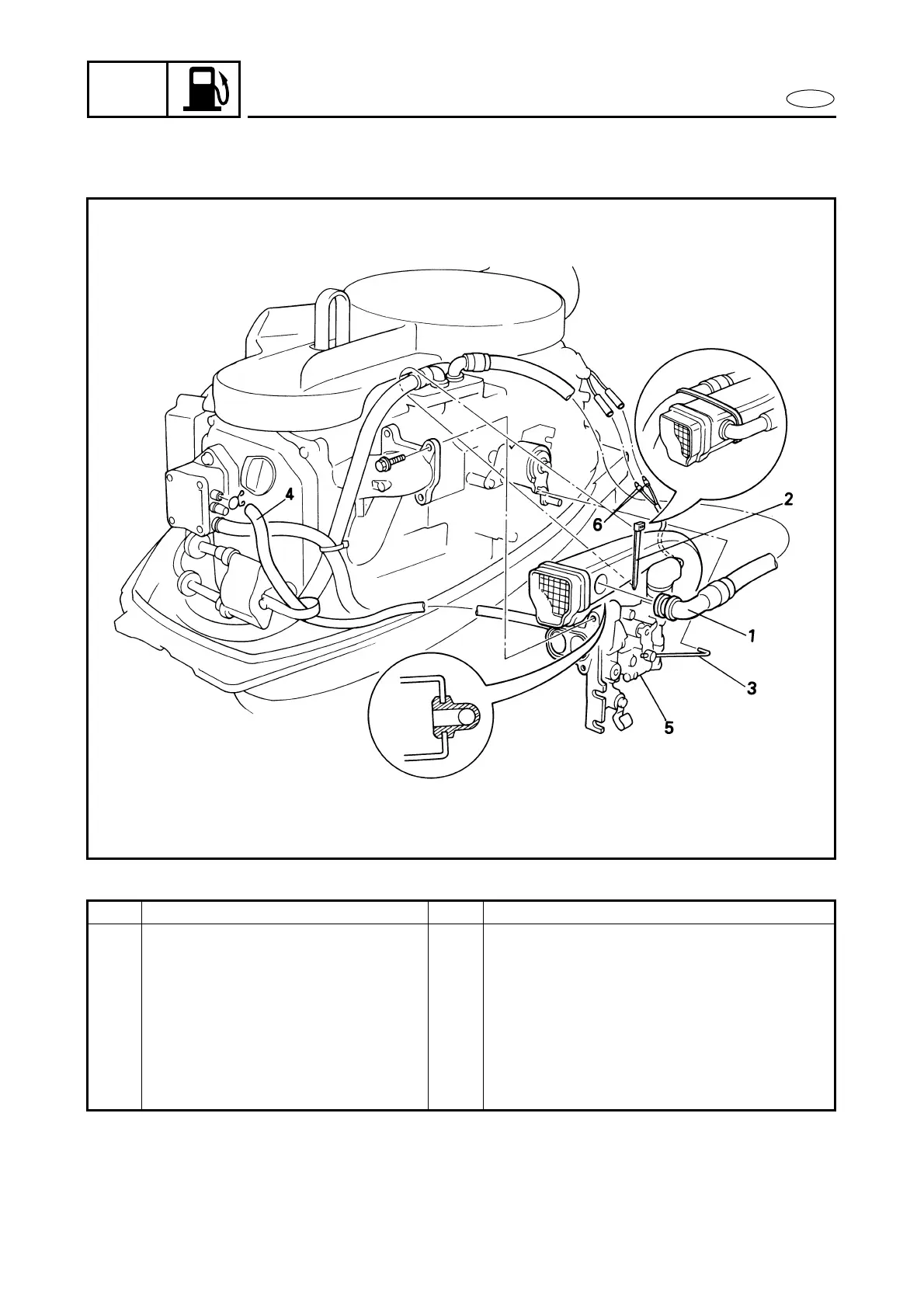

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CARBURETOR UNIT REMOVAL
Follow the left “Step” for removal.
1 Breather hose 1
2 Plastic locking tie 1
3 Throttle link rod 1
4 Fuel hose 1
5 Carburetor unit 1
6 Electrothermal ram connector 2 Yellow, Yellow
Reverse the removal steps for installation.
