6-12
E
LOWR
FORWARD GEAR AND DRIVE SHAFT
FORWARD GEAR AND DRIVE SHAFT

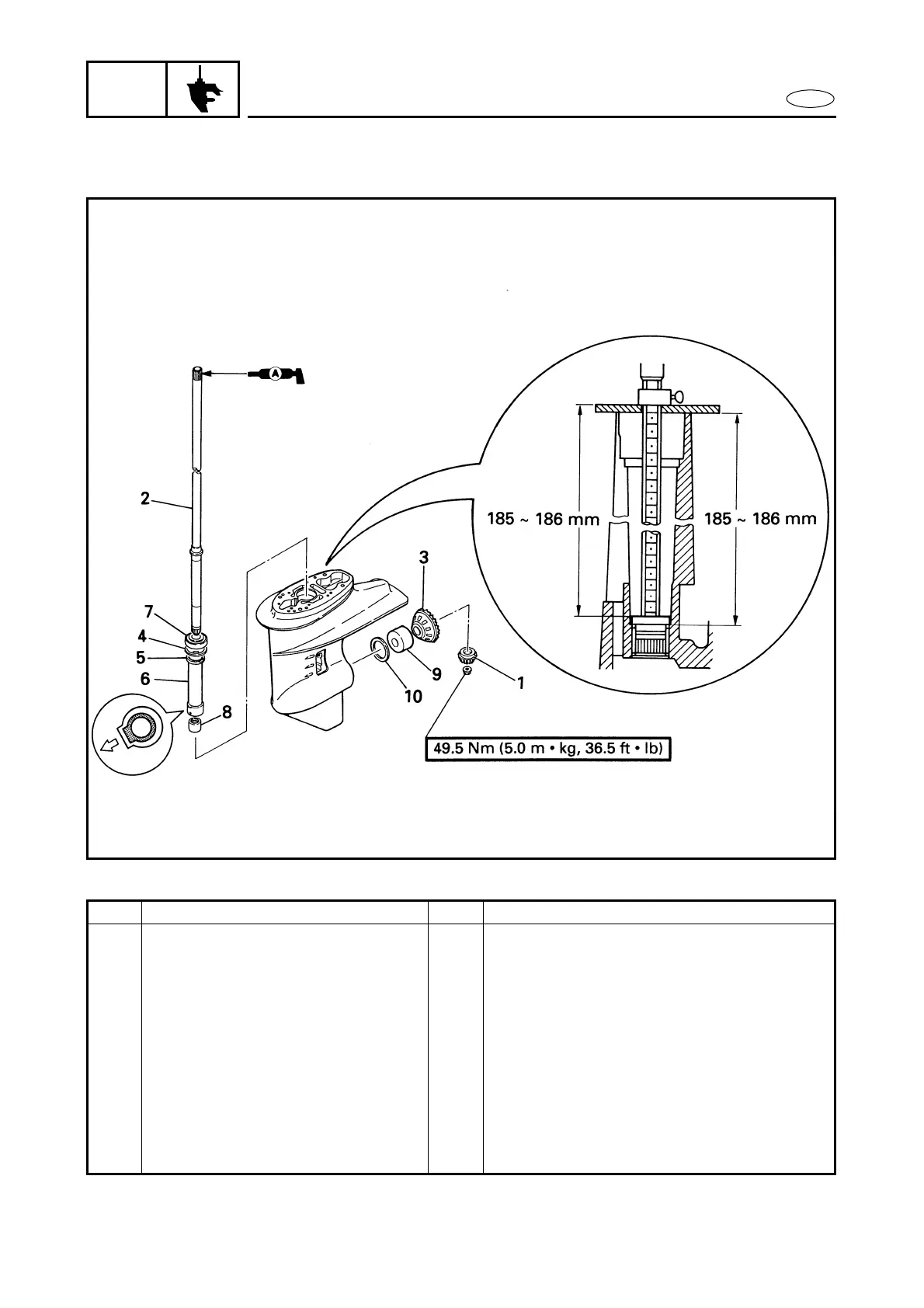

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
FORWARD GEAR AND DRIVE
SHAFT REMOVAL
Follow the left “Step” for removal.
Propeller shaft assy. Refer to “PROPELLER SHAFT ASSY.”.
1 Pinion gear 1
2 Drive shaft 1
3 Forward gear (along with the
tapered roller bearing)
1
4 Drive shaft bearing outer race 2
5 Pinion gear shim 1 set
6 Drive shaft sleeve 1
7 Drive shaft bearing 1
To Next Page
