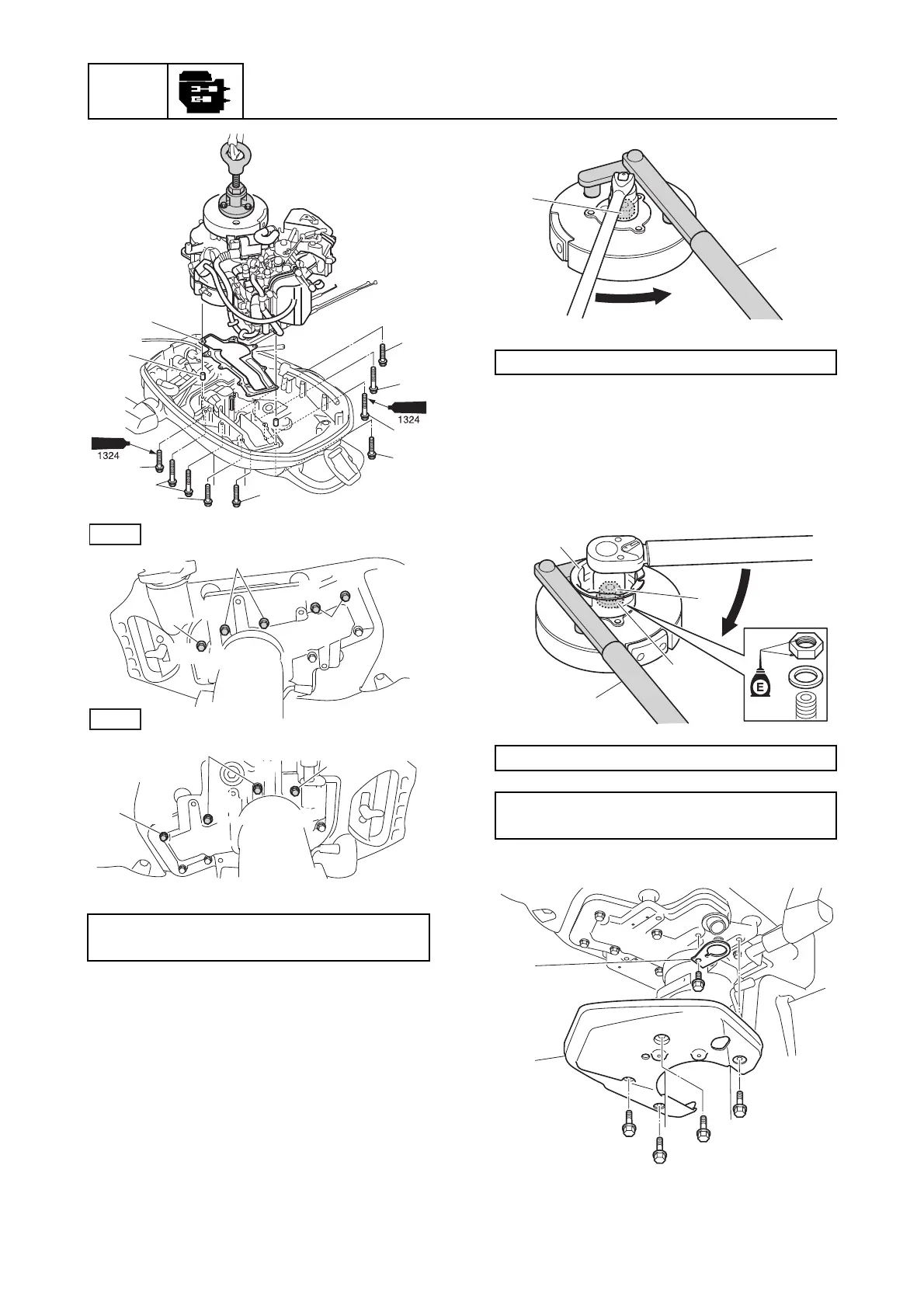

6. Remove the special service tool.
7. Loosen the flywheel magnet nut h.
NOTICE: Apply force in the direction
of the arrow to prevent the flywheel
holder i from slipping off easily.
8. Install the starter pulley j and washer
k, and then tighten the flywheel magnet
nut h to the specified torque. NOTICE:
Apply force in the direction of the
arrow to prevent the flywheel holder
i from slipping off easily.
9. Install the plate l and cover m.
Power unit mounting bolt f and g:
12 N·m (1.2 kgf·m, 8.9 ft·lb)
