Yamaha F80 - Page 350

6B-4
Outboard Rigging Guide - 2001

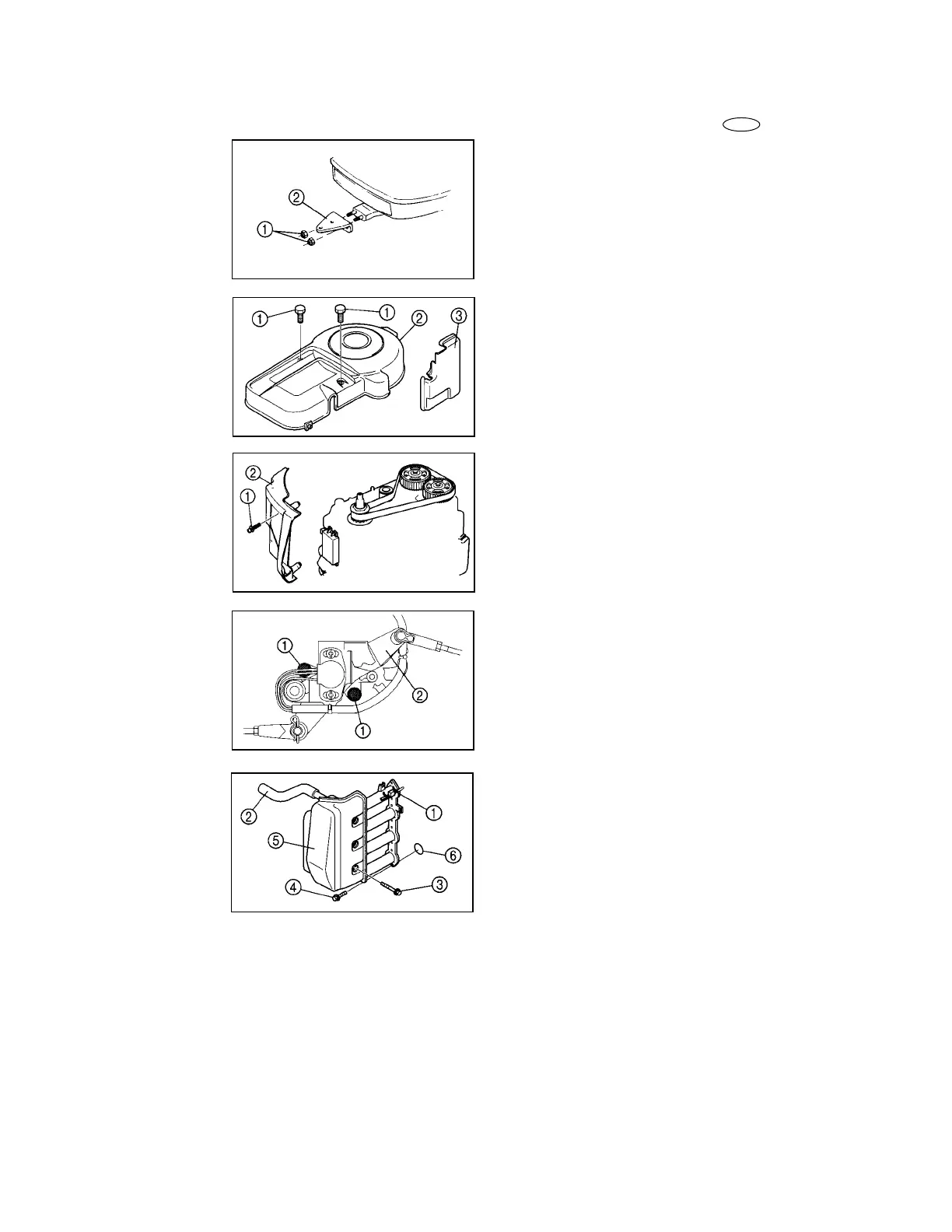

TILLER HANDLE
PREPARATION
1. Remove:
• Nut 1
• Steering hook 2
2. Remove:
• Bolt 1
• Flywheel cover 2
• Junction box cover 3
3. Remove:
• Screw 1
• CDI unit cover 2
4. Remove:
• Bolt 1
• Throttle control assembly 2
5. Remove:
• Plastic locking tie 1
• Hose 2
• Bolt 3
• Bolt 4
• Intake silencer 5
• O-ring 6
E
