Yamaha FZ 25 2021 - General Chassis Component Removal

4-1
CHAS
GENERAL CHASSIS
GENERAL CHASSIS

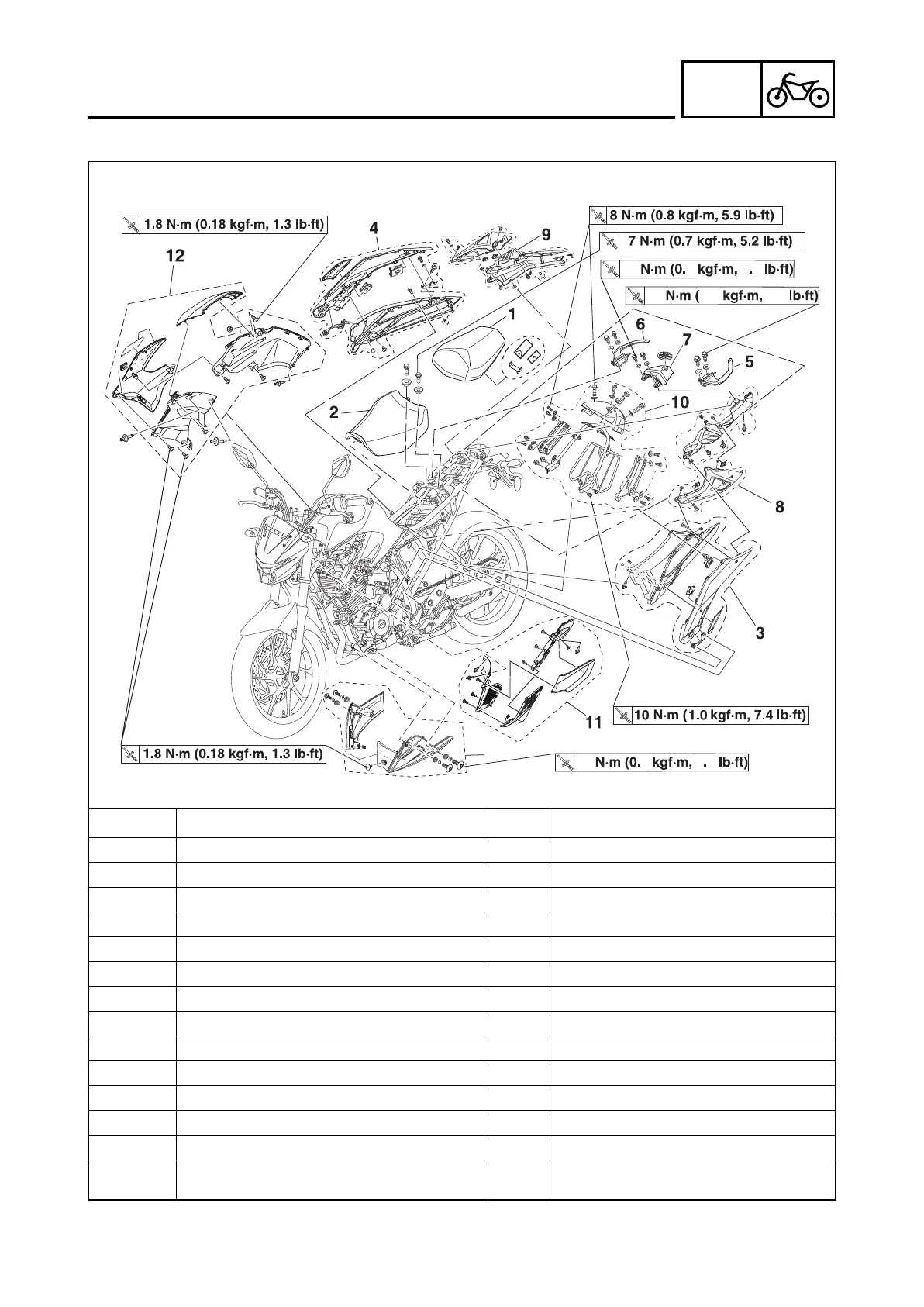

Removing the under cover
Order Job/Parts to remove Q’ty Remarks
1
Passenger seat 1
2
Rider seat 1
3
Left side cover 1
4
Right side cover 1
5
Left seat handle 1
6
Right seat handle 1
7
Tai l cove r 1
8
Left rear side cover 1
9
Right rear side cover 1
10
Mud protector 1
11
Left side panel assembly 1
12
Right side panel assembly 1
13
Under cowling assembly 1
For installation, reverse the removal proce-
dure.
